Autel MaxiSYS MS909 S2 Car Diagnostic Scanner

Autel MaxiSYS MS909 S2 — full-system diagnostics and programming for all types of vehicles. Autel MaxiSYS MS909 S2 is a professional Android-based diagnostic tool that provides intelligent diagnostic capabilities, comprehensive programming, and advanced maintenance functions. It is the upgraded successor to the original MS909, featuring faster hardware and a newer operating system.

Key Features of Autel MaxiSYS MS909 S2

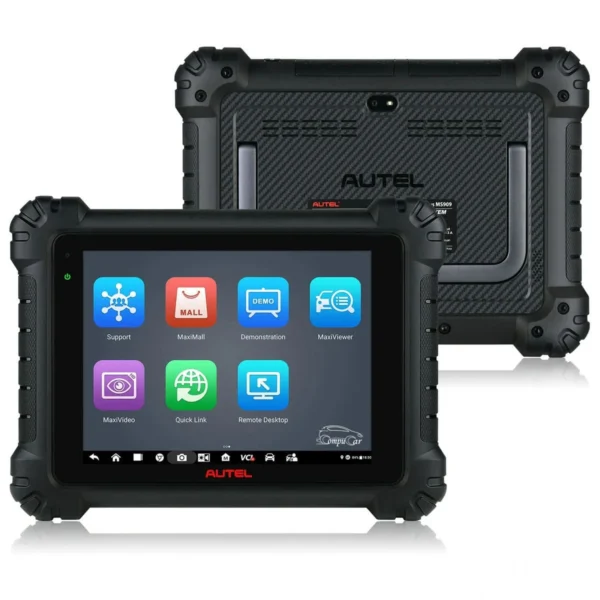

• Powerful 11-inch Touchscreen: Upgraded high-resolution (2176 x 1600) touchscreen features capacitive touch technology for a clear and user-friendly experience.

• Octa-core Processor: 2.7GHz Octa-core processor delivers strong performance for fast diagnostics and multitasking.

• Memory and Storage: Comes with 256GB of internal memory and 12GB RAM for smooth operation and ample storage for data and images.

• Android 13.0 Operating System: Runs on the latest Android 13 OS, providing a fast interface, faster response times, and broad compatibility with modern applications.

• Bi-Directional Wi-Fi (Wi-Fi 6E): Allows you to wirelessly connect the device to the vehicle and get real-time diagnostic data.

• Advanced VCI (Vehicle Communication Interface): Supports the latest vehicle communication protocols, including DoIP, D-PDU, and CAN FD, ensuring coverage for the newest vehicle models.

• Topology 3.0 – Dynamic Network Analysis: Provides detailed color-coded topology maps of vehicle modules (Red for faults, Green for normal), allowing you to view the network structure and locate faults instantly.

• Online J2534 programming capabilities: Advanced Autel MS 909 Maxi Flash VCI gives the unit the ability to connect with Online OEM accounts to perform ECM updates, programming, advanced coding, and much more.

• ADAS capable: Device can connect to your ADAS tool and perform Advance Driver Assistance System calibration.

• Digital Vehicle Inspection (DVI): Supported by the 16MP cameras, this feature allows technicians to document vehicle wear and faults with photos and videos, attaching them to reports to enhance customer trust and transparency.

• Rechargeable Lithium Battery: A massive 15000mAh battery provides over 8 hours of continuous use.

Autel MaxiSYS MS909 S2 Core Functions

• Read and Record OBD2 Data: Read and analyze OBD2 data from all vehicle systems with live data graphing.

• Intelligent Diagnostics: Accurately pinpoint engine or system problems with Repair Assist and relevant solution suggestions.

• Active Tests (Bi-directional Control): Test various vehicle systems such as ABS, SRS, windows, and solenoids by sending commands directly from the tablet.

• ECU Programming & Coding: Program the vehicle’s ECUs to update firmware (J2534 pass-thru) and perform advanced coding to unlock hidden features or match replaced modules.

• Advanced Service Functions: Includes resetting DTCs, performing various programming operations, key coding, ECU coding, and much more.

General Specifications

• Comprehensive Coverage: Autel MaxiSYS MS909 S2 provides extensive coverage for more than 140 American, Asian, and European vehicle makes, including high-performance sports cars.

• OE-Level Performance: MS909 S2 delivers OEM-level performance. It features comprehensive scanning software for various OBDII systems, in addition to advanced programming functions for Electronic Control Units (ECUs).

• Automatic Updates: You get free updates for the device system and diagnostic software for two years. These updates ensure you stay current with the latest car models and technologies.

• Interactive Data Logging: Interactive data logging system allows you to send data directly to Autel’s technical support engineers to troubleshoot diagnostic bugs and find solutions.

• Multitasking Management System: Designed to efficiently manage workshop operations. It organizes all customer data, vehicle information, and repair history files.

• Cloud Database: Cloud-based Report Management allows you to save and share reports via QR code, text, or email, allowing access from anywhere.

Technical Specifications of Autel MaxiSYS MS909 S2

• Operating System: Android 13

• Processor: Octa-core Processor (2.7 GHz)

• Memory: 12GB RAM & 256GB On-board Memory

• Display: 11-inch TFT-LCD with 2176 x 1600 resolution & Capacitive Touch Screen

• Connectivity: Wi-Fi 6E (802.11ax), BT V5.0, GPS, USB 2.0 (Type-A & Mini USB), HDMI 2.0, SD Card Support

• Camera: Rear: 16 Megapixel, Autofocus with Flash | Front: 16 Megapixel

• Sensors: Accelerometer, Ambient Light Sensor (ALS)

• Audio: Microphone, Dual Speakers

• Power and Battery: 15000mAh 3.8V Lithium-Polymer Battery

• Input Voltage: 12V/3A Adapter

• Operating Temperature: 0 to 50°C

• Storage Temperature: -20 to 60°C

• Weight: 1.66 kg (3.66 lb.)

Cars Supported by Autel MaxiSys MS909 Car Diagnostic and Programming Device

(Note: Coverage may vary slightly depending on the region)

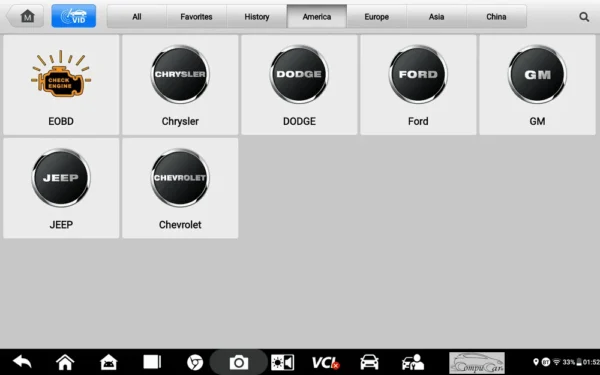

American Cars: Ford, General Motors, Chrysler, Dodge, Jeep, Chevrolet.

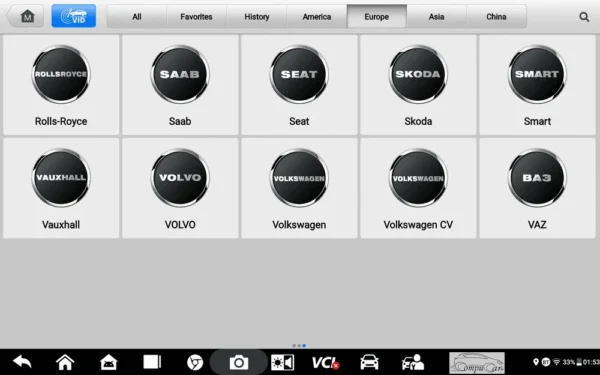

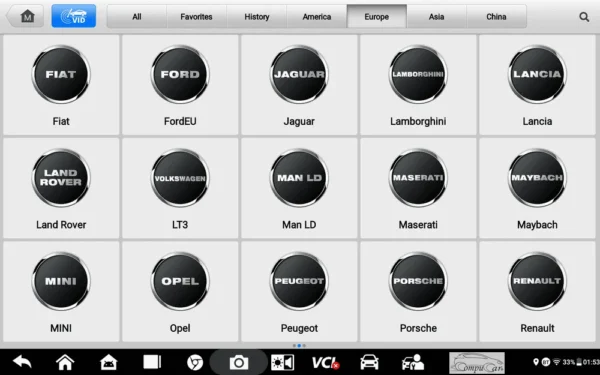

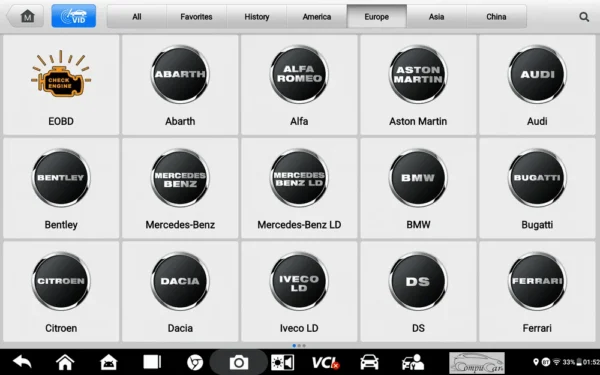

European Cars: Land Rover, Jaguar, European Ford, Porsche, Volvo, Maserati, Peugeot, Opel, DS Automobiles (UK), Vauxhall, Citroen, Fiat, VAZ Lada, Lancia, Alfa Romeo, Renault, Dacia, Mercedes-Benz, Mercedes-Benz – Maybach, BMW, Abarth, Mini Cooper, Rolls-Royce, Volkswagen, Bentley, Lamborghini, Bugatti, Volkswagen Commercial Vehicles, Volkswagen LT3, Audi, Skoda, MAN, Seat, Saab, Smart, Ferrari, Aston Martin, Iveco.

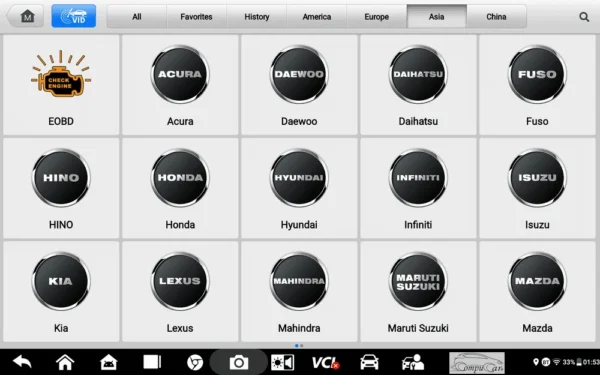

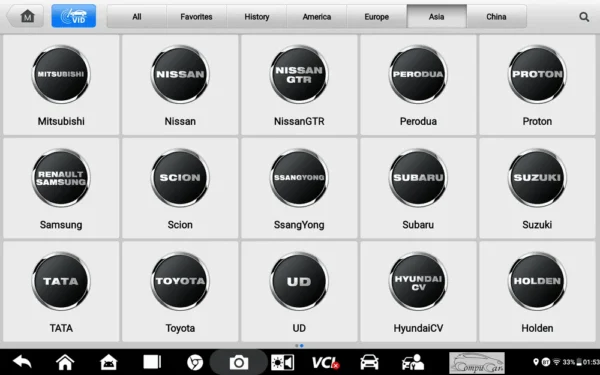

Asian Cars: Mazda, Suzuki, Suzuki Maruti, Isuzu (Japan), Subaru, Toyota, Scion (Toyota), Lexus, Honda, Acura, Nissan, Nissan GT-R, Infiniti, Mitsubishi, Daihatsu, Proton, Perodua, Fuso, Daewoo, Hyundai Commercial Vehicles, Hyundai, Kia, Samsung, Renault Samsung, SsangYong.

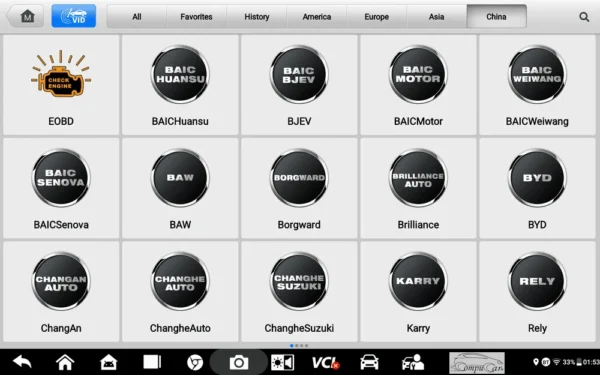

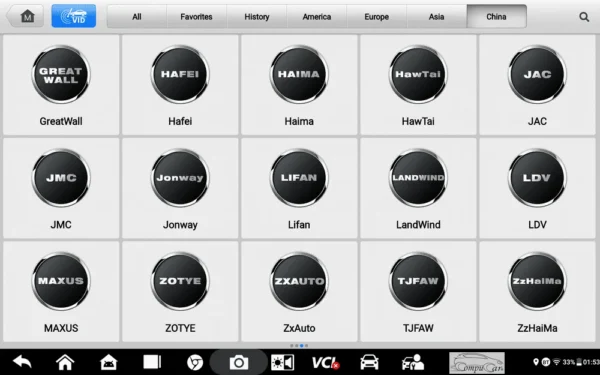

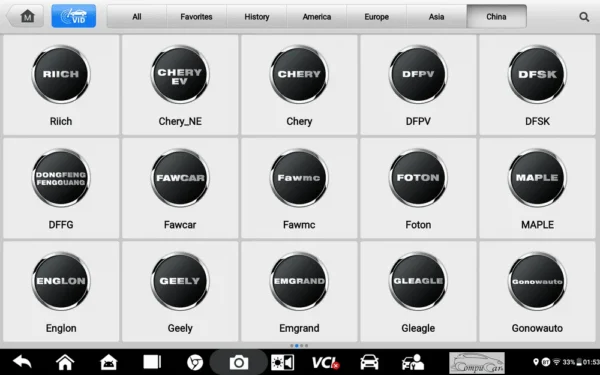

Chinese Cars: BAIC Huansu, Borgward, BAIC Motor, BAIC Senova, Chery, DFSK, LDV, Zotye, DFFG, BAIC Weiwang, BAW, Brilliance, Changan, Changan Auto, JMC, Roewe, Lifan, JAC, SAIC MG, Chery, Foton, BYD, Karry, DFV, Rich, Great Wall, Rely, Geely, Maple, Emgrand, Englon, Gleagle, Landwind, Maxus, FAW, Qoros Auto, ZX Auto, Haima, Tianjin FAW, Hava.

Indian Cars: Tata, Maruti, Mahindra.

Other Supported Cars: Holden (Australia).

For more info about the Autel MS909, Contact Compu-Car team by WhatsApp from here, or call us on same number

Special Functions Available in the Autel MaxiSys MS909 S2 Scanner

Autel scanner 909 offers a wide range of advanced service functions, including:

• Oil Change Light Reset: Reset the oil change and periodic maintenance service indicator.

• Electrical Parking Brake Reset: Reset the electronic parking brake system after replacing brake discs or pads.

• TPMS Diagnostics: Access the vehicle’s TPMS control module to read and clear fault codes and read sensor IDs. (Sensor programming and relearn are not supported — these require a dedicated TPMS tool).

• Battery Monitoring System (BMS) Reset: Register a new battery in the Battery Management System after replacement.

• BRAKE BLEED: Bleed air from the brake system after changing brake fluid or performing repairs on the system.

• IMMO KEYS: Program new keys or delete old keys from the vehicle’s immobilizer system.

• Injectors Coding: Program new diesel injectors after replacement to ensure they function correctly.

• Steering Angle Sensor Calibration: Calibrate the steering angle sensor after performing repairs on the steering system or replacing components.

• Suspension Reset: Reset the electronic suspension system after performing repairs on the suspension system or replacing components.

• Throttle Relearn: Reset the electronic throttle control system after cleaning or replacing it.

• Seats Occupancy Calibration: Calibrate the weight sensors in the seats to ensure the airbag system functions correctly.

• Language Change: Change the language of the infotainment system in the car to the driver’s preferred language.

• Adaptive Front Light: Adjust and program the adaptive headlight system to ensure it functions correctly.

• Tyre Size Changing: Reset the wheel data in the car’s system after changing tires or their sizes.

• Thermoelectric Cooling (TEC) Learn: Program the electronic temperature sensor in the air conditioning system to ensure the system operates efficiently.

• ABS/SRS Reset: Reset the Anti-lock Brake System and airbag system after performing repairs on the systems or replacing components.

• Cylinder Adjustment: Adjust the cylinder timing in the engine to ensure smooth and efficient engine operation.

• Variable-geometry Turbochargers Learning: Define the variable geometry turbocharger in diesel engines after replacement or repair.

• Power Take-Off (PTO) Adjustment: Adjust the power transfer system in vehicles equipped with this system.

• Clutch Reset: Reset the clutch system after replacement or repair.

• Transmission Adaptation: Initialize the new transmission to work correctly with the car.

• Aftertreatment Systems Reset: Reset the exhaust gas treatment system after performing repairs or replacing components.

• Windows and Roof Calibration: Calibrate the windows and sunroof after replacement or repair.

• Airbag Reset: Reset the airbag system after replacement or repair.

• Air Fuel Ratio (A/F) Sensors Setting: Adjust the settings of the air-fuel ratio sensors in the combustion mixture to ensure efficient engine operation.

• Automatic Start/Stop Reset: Reset the automatic start/stop system after performing repairs on the system or replacing the battery.

• Electronic Water Pump Start: Program the electronic water pump after replacement.

• Exhaust Gas Recirculation (EGR) Reset: Reset the Exhaust Gas Recirculation system after cleaning or replacing it.

• VIN Reading: Read or write the Vehicle Identification Number (VIN) in the electronic control unit.

• Footwell Module (FRM) Reset (BMW): This function is responsible for resetting the Footwell Module (FRM) in BMW cars, which helps restore the unit’s proper operation and resolve issues related to interior lighting, doors, windows, and side mirrors.

• Transport Mode: Activate transport mode in the car to prepare it for transportation on a carrier.

• HV Battery Reset: Reset the high-voltage battery in hybrid cars after replacement or repair.

• A/C System Initialization: Reinitialize the air conditioning system after performing repairs or replacing components.

• Adaptive Cruise Control (ACC) Adjustment and Programming: Adjust and program the adaptive cruise control system to ensure it functions correctly.

• ECU Reset: Reset various electronic control units in the car to factory settings.

• Rain/Light Sensor Programming: Program the rain/light sensor after replacement.

• Diesel Particulate Filter (DPF) Regeneration: Program the new diesel particulate filter after replacement.

• Gateway Module Data Calibration: Calibrate the gateway module data for information and network in the car.

• Center Console Display Service: Central control unit display service.

• Adaptive Cruise Control (CCA/ACC): Adaptive cruise control programming and calibration.

Protocols supported by the device

CAN FD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2).

(Note: Available service functions may vary depending on the car’s make, model, year, and region. Be sure to check the electronic user manual on your device for specific information about the service functions available for your device).

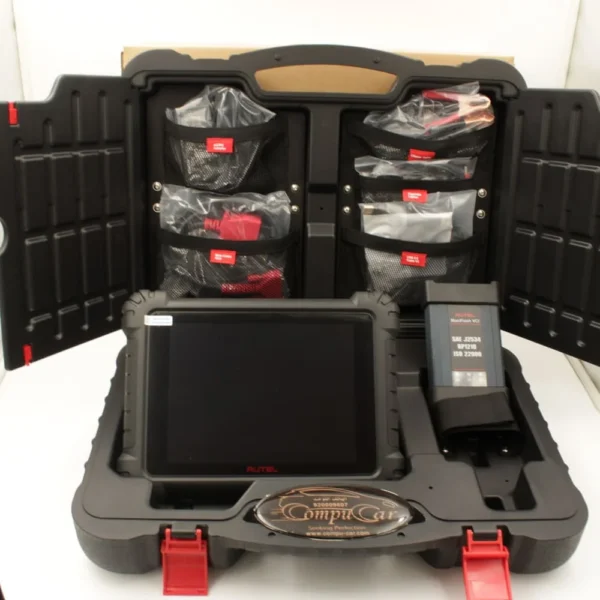

Accessories available with Autel MS909 S2

Main Unit, Vehicle Communication Interface, Main Cable V2.0, USB 2.0 Cable, V2 Cable, AC/DC Adapter (12V), Cigarette Lighter Charging Cable, Two 6x30mm Fuses, Cable Cutter, Quick Start Guide, Device Accessories List, Soft Cloth, Carrying Case.

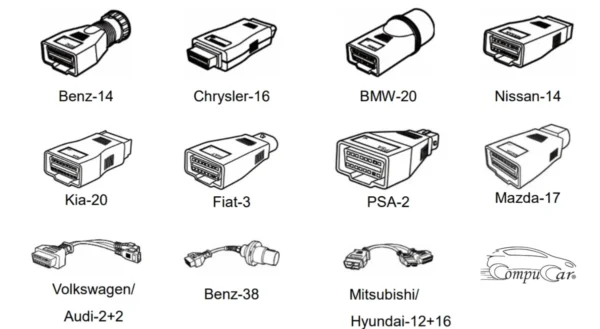

Autel 909 MaxiSYS OBDI Adapters (optional and sold separately for scanning older cars): The optional OBDI adapters are for vehicles without OBDII 16 PIN connector. The adapter used depends on the type of vehicle being tested. These adapters are sold separately. Please contact the distributor for details.

Additional Features

• Front and Rear Cameras: 16MP cameras for clear documentation (DVI).

• Durable Design: Rugged casing designed for workshop environments.

• Ease of Use: User-friendly interface with clear instructions.

• Multi-Language Support: Available in Arabic, English, and other languages.

With Autel MaxiSYS 909, you get:

• A Professional Diagnostic Tool: Enjoy performance equivalent to factory devices and diagnose and repair almost any problem in almost any car.

• Advanced Programming Functions: Easily program the vehicle’s Electronic Control Units (ECUs).

• Regular Updates: Keep your device up-to-date with the latest information and functions.

• Technical Support: Get the help you need from Autel’s technical support engineers directly from the device or through our engineers.

• Long-Term Value: A diagnostic tool built to last.

Warranty and Technical Support

Compu-Car is the official Autel dealer in Saudi Arabia. We provide a two-year warranty on the MaxiSYS MS909 device, in accordance with the regulations of the Saudi Ministry of Commerce, which mandates a two-year warranty for all electronic equipment. The warranty covers manufacturing and material defects.

Autel offers free technical support for Autel scanner MS909. Technical support is available by phone, email, and live chat with the Factory from your diagnostic unit. You can also access a comprehensive online resource database, including user manuals, instructional videos, and troubleshooting guides. In addition, Autel offers a range of training products to help you learn more about the MaxiSYS MS909 and how to use it to get the most out of it.

In addition to Autel support, our team of skilled experts is available to assist with any issues you may encounter. You can contact the technical support team by phone or email or visit the main center in Jeddah.
