Autel KM100 Car Key & Remote Programmer

Autel KM100 Key Programmer: Smart Key Generation & OBD IMMO

Autel km100 key programmer is a compact 5.5-inch Android tablet that works with the MaxiVCI V200 interface. It is a dedicated tool engineered specifically for generating smart keys, car remote programming, and performing IMMO learning directly via the OBD port.

What the KM100 Does (Core Functions)

• Smart IKEY Key Generation: Programs Autel IKEY universal key as a smart-key replacement for over 700 vehicles, generating the new key in just 60 seconds (50% faster).

• Remote & Key Programming: Supports frequencies 315/433 MHz and 868/915 MHz, covering 8 IKEY series and 37 models.

• OBD IMMO Learning: Provides IMMO learning via OBD for over 90% of models, supported by AutoVIN technology. Compatible IKEY IMMO types include ID46, 47, 49, 4A, 5C, Megamos 48, and MQB.

• Chip Read, Write & Clone: Offers comprehensive cloning (including 46 via password calculation, 42, 11, 12, 13, 33, 8C), 20-protocol chip editing, and Ford ID63↔ID83 conversion.

• Emergency Chip Simulation: Simulates ID46/47/48/49/4A/8A chips to start the vehicle when no physical chip is available.

Advanced Functions Unique to KM100

• Ignition Coil Detection: Gathers IMMO protocol and transponder-type data; a function built into this compact device and not found in other devices.

• Key Unlocking / Renewal: Renews a used smart key so it can be reprogrammed for a new car, supporting 36 makes.

• Toyota Smart Unlocking: Supports the unlocking of original 4D 40/80-bit and 8A 128-bit Toyota chips.

• IMMO Data Processing: Calculates the password and writes it directly to the chip to make a spare key.

• Built-in APB112: Collects coil data, detects coil faults, reads 46/4D chip data, and simulates keys. The device operates through 6 main Job-Menu functions: Universal Key, Reading/Cloning, Transponder Function, Frequency Detection, IMMO, and Special Functions.

Supported Brands

KM100 supports key programming for BMW, Volkswagen, Toyota, Honda, General Motors, Lexus, Mercedes, Audi, Nissan, Hyundai, Kia, and more.

Important Technical Limits: IKEY keys are strictly Autel-brand only (it does not accept other key brands). For chips, it supports original and aftermarket options (such as the Xhorse super chip), however, the xt27 chip generates once and then requires an Xhorse tool to be reset. Please note: This unit is a specialist key and IMMO tool; it does not perform general vehicle diagnostics or maintenance service functions.

Technical Specifications

• Screen: 5.5-inch touchscreen, 1280×720 resolution

• OS: Android 9.0

• Processor: Rockchip PX30 quad-core ARM Cortex-A35 @ 1.5GHz

• Memory: 2GB RAM + 64GB storage

• Camera: 8 megapixels

• Connectivity: Wi-Fi + Bluetooth 5.0 + USB 2.0 Type-C

• Battery: 4950mAh lithium-polymer (3.85V)

• Input: 5V / 2A

• Sensor: Ambient light sensor

• Audio: Microphone + speaker

• Dimensions: 200 × 89 × 22 mm

• Weight: 352.7 g

• Operating temp: -10 to 45°C

• Storage temp: -20 to 60°C

• VCI: MaxiVCI V200

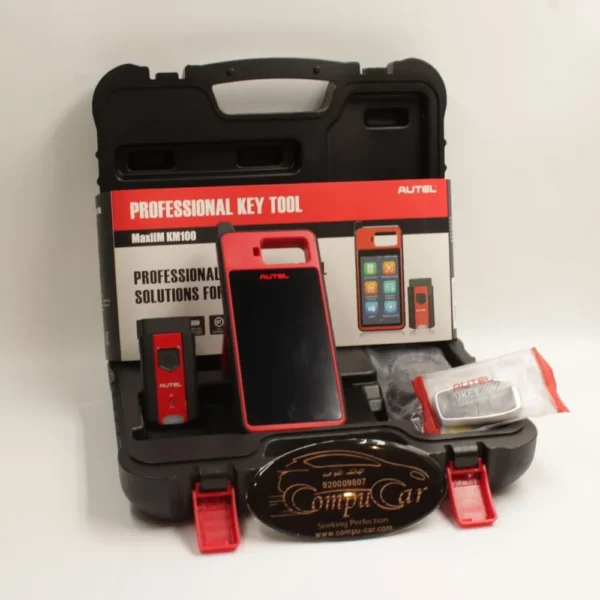

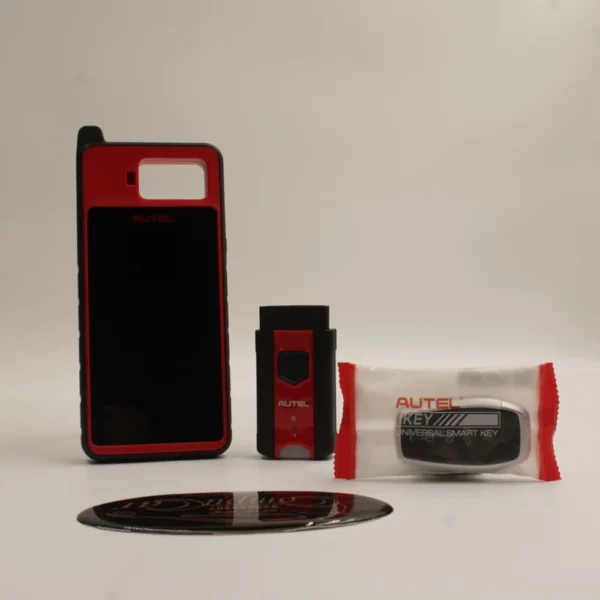

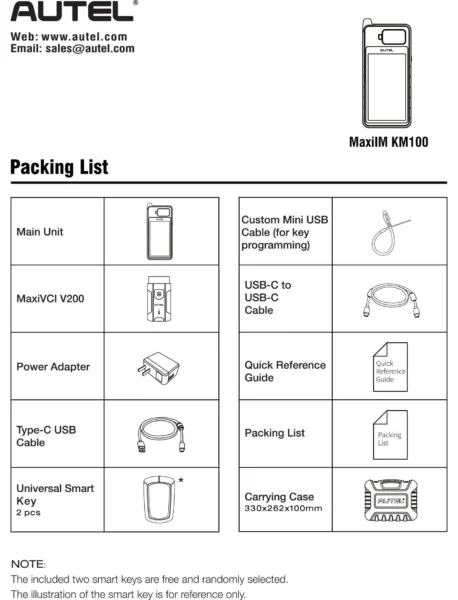

What’s in the Box

• KM100 main unit

• MaxiVCI V200 interface

• Power adapter

• USB Type-C cable

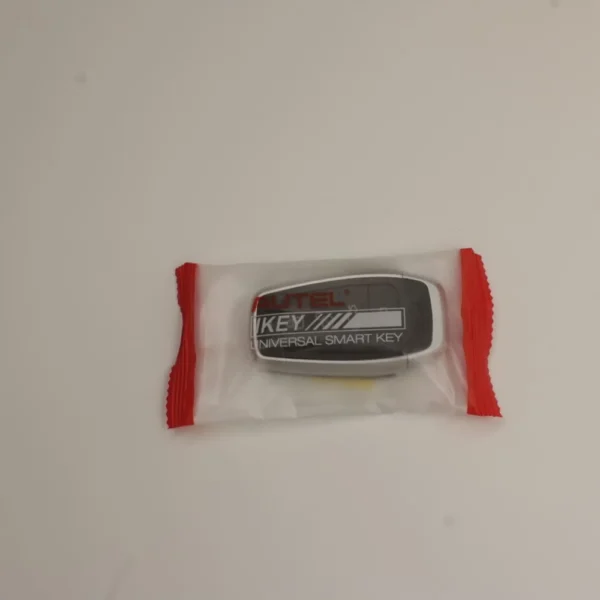

• 2× universal IKEY smart keys (free, randomly selected)

• Custom Mini USB cable (for key programming)

• USB-C to USB-C cable

• Quick reference guide + packing list

• Hard carrying case (330 × 262 × 100 mm)

Warranty & Support from CompuCar

CompuCar is the authorized Autel dealer in Saudi Arabia, operating since 2010. When you purchase the KM100 from us, you receive a genuine unit backed by a two-year warranty, dedicated technical support, and lifetime free updates to ensure your equipment remains current.

Important Note:

The MaxiIM KM100 is intended for lawful automotive key-related operations. Users must have legal authorization to access and program the vehicles they work on, either through legal ownership of the vehicle or explicit permission from the vehicle owner.
