Launch X431 Sensor box S2-2

Launch X431 Sensor box S2-2 : Elevate Your Automotive Diagnostics with Precision and Efficiency

Struggling to diagnose sensor and ECU faults in vehicles? Looking for a car fault detection tool that delivers pinpoint accuracy and swift problem identification?

The Launch S2-2 Sensorbox is specifically designed to help you test and simulate most automotive sensors, enabling you to quickly and efficiently pinpoint faults in the Electronic Control Unit (ECU). With its seamless integration with Launch X-431 car diagnostic tools, this device offers a comprehensive solution for troubleshooting and maximizing your workshop’s diagnostic capabilities.

Unleash the Power of Advanced Diagnostics with the Launch S2-2 Sensorbox:

• Test and Simulate Automotive Sensors:
  • The Launch S2-2 Sensorbox allows you to test and simulate a wide range of automotive sensors, helping you determine whether the issue lies with the sensor itself or the ECU.
• Rapid Fault Diagnosis:
  • Quickly identify ECU errors, saving valuable time and accelerating the repair process.
• Seamless Integration with Launch X-431:
  • Connect the Launch S2-2 Sensorbox to your Launch X-431 car diagnostic computer via Bluetooth to unlock its full diagnostic potential.
• Boost Workshop Revenue:
  • Accurately and efficiently diagnose faults, enabling you to offer high-quality repair services and increase your workshop’s revenue.
• User-Friendly Operation:
  • The device features a simple and intuitive user interface, making it suitable for technicians of all skill levels.

Launch S2-2 Sensorbox: Exceptional Features to Enhance Your Diagnostic Capabilities – The Advanced Car Fault Detection Tool from Launch

The Launch S2-2 Sensorbox, a cutting-edge car fault detection tool from Launch, boasts a range of unique features that make it an indispensable asset for any modern auto repair shop. It goes beyond just a sensor tester, offering advanced capabilities to simulate sensor operation and analyze the performance of the vehicle’s Electronic Control Unit (ECU), streamlining problem identification and resolution. This device is a powerful addition to the Launch X-431 series, making it the best car diagnostic tool for those seeking comprehensive functionality.

Discover the Power of the Launch S2-2 Sensorbox:

• ECU Testing:
  • Verify the proper functioning of the Electronic Control Unit (ECU) itself, helping you determine if the issue lies within the ECU or a connected sensor.
• Manual Waveform Input:
  • Manually input waveform data to generate specific signals for precise testing of sensors and the ECU.
• Sensor Simulation:
  • Simulate various sensor operating conditions without replacing them, saving time and costs during diagnosis.
• Special Condition Simulation:
  • Simulate specific sensor operating conditions to identify issues that may only manifest under certain circumstances.
• Multifunctional Device:
  • The device doubles as a versatile multimeter, enabling you to measure resistance, voltage (AC/DC), capacitance, frequency, pulse signals, and other crucial electrical parameters.
• Intuitive Menu:
  • Access a user-friendly menu with a single click, encompassing sensor testing, actuator testing, waveform definition and drawing, timing adjustments, multimeter functions, and system settings.

From Compu-Car: Your Authorized Launch Distributor in Saudi Arabia

Get the original Launch S2-2 Sensorbox from Compu-Car, the authorized distributor in Saudi Arabia. We guarantee a genuine, high-quality product, backed by a comprehensive two-year warranty and exceptional technical support from our specialized team.

Have a question or need more information? Contact us on WhatsApp using the icon below or call us at the same number.

Launch S2-2 Sensorbox: The Ultimate Solution for Testing and Simulating Automotive Sensors

Advanced Specifications for Precise Automotive Diagnostics

The Launch S2-2 Sensorbox delivers exceptional performance and accuracy with its cutting-edge technical features, making it the go-to choice for automotive professionals seeking the best car diagnostic tool. This powerful device is a valuable addition to the Launch X-431 series, offering advanced diagnostic capabilities for a vehicle’s electronic components.

Launch X431 S2-2 Sensorbox Specifications:

• Number of Channels:
  • Two independent channels for simultaneous measurement and recording of multiple electrical signals, enabling you to analyze the performance of various components concurrently.
• Voltage Simulation Range:
  • From 0 to 20 volts, providing flexibility for testing a wide range of sensors and actuators.
• Maximum Output Current:
  • Up to 20mA, ensuring the safety of electronic components during testing.
• Square Wave Signal Pulse Frequency:
  • From 0 to 15KHz, allowing you to simulate various sensor signals.
• Square Wave Signal Duty Cycle:
  • From 0 to 100%, offering precise control over the simulated signal shape.
• DCV Simulation:
  • Supports DC voltage simulation for testing sensors operating at a constant voltage.
• Frequency Simulation:
  • Supports frequency simulation for testing sensors that rely on frequency-based signals.
• Multimeter Functionality:
  • Functions as a versatile multimeter, enabling measurements of resistance, voltage (AC/DC), capacitance, frequency, pulse signals, and more.
• Operating Temperature Range:
  • From 0°C to 50°C, ensuring reliable performance in various working conditions.
• Storage Temperature Range:
  • From -30°C to 70°C, allowing safe storage in a wide range of environments.
• Certifications:
  • The device holds CE, FCC, and RoHS certifications, demonstrating its compliance with international safety and quality standards.

Comprehensive Control Over Automotive Sensors and ECUs

The Launch S2-2 Sensorbox is an advanced tool essential for modern automotive maintenance. It empowers you to diagnose and simulate sensor faults, providing exceptional accuracy and speed in identifying and resolving issues, and ultimately helping you deliver top-quality repair services to your customers.

What is an Automotive Sensor?

Think of a sensor as the eyes of your car’s Electronic Control Unit (ECU). It translates various vehicle operating parameters, such as speed, coolant temperature, engine RPM, airflow, and throttle position, into electrical signals that it sends to the ECU. These signals enable the ECU to understand the car’s condition and make necessary decisions to control engine performance and other vehicle systems.

The Role of the ECU:

The ECU is the brain of the car, processing signals from various sensors and making decisions to control the engine and other systems. It also provides the functionality of multiple measurement devices in the car, allowing you to measure voltage, resistance, capacitance, and other critical electrical values.

Launch S2-2 Sensorbox Functions:

The Launch S2-2 Sensorbox offers a range of functions to simplify the diagnosis and simulation of sensor faults:

• Sensor:
  • Test and simulate a wide array of automotive sensors.
• Actuator:
  • Simulate control signals to verify the response of various actuators in the vehicle.
• Defined/Drawn:
  • Identify and draw waveforms of electrical signals from sensors and the ECU.
• Timing Waveform:
  • Accurately adjust the timing of electrical signals to simulate various operating conditions.

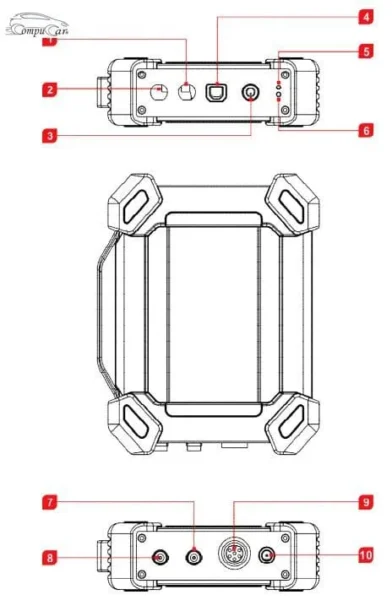

Components and Controls for Precision Diagnostics

The Launch S2-2 Sensorbox features a thoughtfully designed layout, combining ease of use with precise control over its versatile functions. Each component is engineered to ensure superior performance and reliable diagnostic results.

Key Components:

1. Multi Com (Com):
   • Provides a common connection point for electrical circuit measurements.
2. Multi-Measurement Terminal (V/Ω/C):
   • Enables measurement of voltage (V), resistance (Ω), and capacitance (C) using appropriate test probes.
3. Power Button:
   • Turns the device on and off.
4. Type B USB Interface:
   • Connects to a Launch X-431 scan tool for data transfer or to a charger for powering the device.
5. Battery Status LED (Green):
   • Indicates battery status – fully charged, low, or charging.
6. Connection Status LED (Red):
   • Shows the connection status with the diagnostic tool.
7. CH2:
   • Second input channel for measuring electrical signals.
8. CH1:
   • First input channel for measuring electrical signals.
9. 7-Pin Interface:
   • Connects test probes to vehicle actuators for measurement. The device must be connected to the car battery for power when measuring actuators.
10. Power Interface:
    • Powers the unit directly from the car battery using the battery clamp cable.

Caution: Do not charge the unit directly through this interface.

Performance Standards:

• Sensor Unit:
  • 2 channels, 1% accuracy, 0~20V voltage simulation range, 20mA max output current.
• Frequency Simulation:
  • Preset frequency range 0~20KHz, square wave signal pulse frequency 0~15KHz, square wave signal duty cycle 0~100%.
• Power Supply:
  • Max current for sensor simulation 20mA (battery-powered output), max output current for ignition coil 2A (requires external power supply).
• Interfaces:
  • USB 2.0 (with charging and power supply function / 5V), 2 signal simulation interfaces, 1 external power supply port, 2 solenoid interfaces, 2 multi-function interfaces.
• Multimeter:
  • DC voltage range 0V~700V, AC voltage range 0V~700V, resistance range 0Ω~40MΩ, capacitance range 0F~100uF (max 30s measurement time), diode range 0V~1.5V, continuity detection (below 30Ω).
• Operating Temperature:
  • From 0°C to 50°C.
• Storage Temperature:
  • From -30°C to 70°C.
• Certifications:
  • CE, FCC, RoHS.

Launch S2-2 Sensorbox Package Contents

The Launch S2-2 Sensorbox comes with a complete set of accessories for a seamless and efficient diagnostic experience.

What’s in the Box:

• Main Sensor Box Unit:
  • The core of the device, enabling you to test and simulate a wide range of automotive sensors.
• HT30 Test Leads:
  • Versatile leads for connecting sensors and testing various electrical signals. A variety of probes, clips, and hooks can be inserted into the 4mm banana plug at the end of the lead.
• 7-Pin Interface Adapter Cable:
  • Used to connect the sensor unit and actuator unit for actuator testing. When testing the actuator, connect the sensor unit to the car battery for power.
• Battery Clamp Cable:
  • Connects the sensor unit directly to the car battery when using the actuator function.
• USB Cable:
  • Connects the sensor unit to the diagnostic tool, transmitting the collected signal for waveform display.
• 6-Way Breakout Leads:
  • Available with three different sizes of joints (1.0mm, 1.6mm, 2.8mm), these leads easily connect to the car’s existing harness interface for reading sensor signals. The output signal connects to the CH1/CH2 input port of the sensor unit via the 4mm banana plug on the other end of the lead.
• Multimeter Test Probes (Black + Red):
  • Primarily used to pierce wire insulation for electrical measurements without causing damage. They can also be used as tip probes when working with PCBs.
• Power Adapter:
  • Charges the sensor unit with the included USB cable.
• Carrying Case:
  • Protects your device and accessories during transport and storage.
• User Manual:
  • Provides detailed instructions on using the device and its features.

How to Use the Launch S2-2 Sensorbox:

Charging Launch Sensor Box

Charging the Launch S2-2 Sensorbox is simple and straightforward, ensuring you’re always ready to diagnose. Follow these steps:

• Connect the Cable:
  • Insert one end of the USB cable (Type-B end) into the Type-B USB port on the S2-2 Sensorbox host. Plug the other end into the USB port on the power adapter.
• Connect the Power Adapter:
  • Plug the power adapter into an AC outlet to start charging. The green light will flash slowly.
• Charging Complete:
  • Once fully charged, the green light will stop flashing and remain solid.

Caution: Only use the provided power adapter to charge your device. We cannot be held responsible for any damage or loss caused by using other power adapters.

Note: If the battery has been unused for a long time or was fully discharged, the Sensorbox may not function normally at first. In this case, please charge it for at least 10 minutes before attempting to power it on.

Connecting to X431 Diagnostic Tool

Effortlessly connect your Launch S2-2 Sensorbox to your diagnostic tool via USB cable, and get ready to dive into the world of advanced diagnostics.

Connection Steps:

• Connect the Cable:
  • Insert one end of the USB cable (Type-B end) into the Type-B USB port on the S2-2 Sensorbox host. Then, insert the other end into the USB port on your diagnostic tool.
• Power On the Device:
  • Press and hold the power button on the S2-2 Sensorbox for more than 3 seconds to turn it on.

LED Indicators and Their Meanings:

Green Light:

• Steady On:
  • Indicates normal battery level.
• Flashing at Medium Speed:
  • Indicates low battery level (regardless of the red light status).
• Flashing at Low Speed:
  • Indicates the device is charging.

Red Light:

• Steady On:
  • Indicates the diagnostic tool is connected.
• Flashing:
  • Indicates the diagnostic tool is not connected.
• Flashing During Charging:
  • Indicates the device is in charging mode. In this case, the green light will also flash at a low speed.

Important Notes:

• Ensure your diagnostic tool is compatible with the Launch S2-2 Sensorbox.
• Verify that the cable is properly connected to both devices.
• Wait for the S2-2 Sensorbox to fully boot up before starting to use it.

Now, you’re ready to embark on a journey of advanced diagnostics with launch sensor simulator and your diagnostic tool!

Function Menu of the Launch S2-2 Sensor box

The Sensor unit is mainly divided into five functional modules:

1. Sensor:

   • Sensor Testing and Simulation:
     • Utilize output voltage or waveforms to simulate the working conditions of various sensors on the board. This allows you to accurately assess sensor quality and reduce unnecessary component replacements.

2. Actuator:

   • Control Signal Simulation:
     • Output PWM signals to drive internal solenoid actuators.
   • Actuator Response Testing:
     • Verify the response of various actuators to control signals from the ECU, helping identify any connection or performance issues.

3. Defined/Drawn:

   • Sensor Waveform Customization:
     • Customize sensor waveforms to facilitate accurate simulation of sensor signals.
   • Simplified Simulation:
     • Streamline the process of simulating various sensor signals, aiding in the identification of potential issues in the ECU or related circuits.

4. Timing Waveform:

   • Signal Timing Customization:
     • Tailor electrical signal timing to match engine timing (crankshaft + camshaft), enabling precise simulation of various operating conditions.
   • Signal Synchronization:
     • Output electrical signals in phase with engine timing, assisting in the identification of timing-related problems in the electronic control system.

5. Multimeter:

   • Multi-Purpose Measurements:
     • Utilize the device as a versatile multimeter to measure voltage (AC/DC), resistance, capacitance, frequency, pulse signals, and other essential electrical values.
   • Comprehensive Diagnostics:
     • Conduct thorough electrical checks on the vehicle, complementing the diagnostic capabilities of the Launch X-431.
