Autel PowerScan PS100: Revolutionize Your Automotive Electrical Circuit Diagnostics

Autel PowerScan PS100 is the most advanced and versatile circuit tester available today, designed to empower automotive technicians with fast, accurate, and comprehensive electrical system diagnostics.

Unmatched Automotive Diagnostic Power Probe at Your Fingertips

This revolutionary tool combines an easy-to-read Avometer, test light, short circuit indicator, relay/component tester, continuity tester, and bad ground indicator, all in one compact and affordable package. The Power Scan PS100 enables you to check circuitry in a single step, saving valuable time and effort in your diagnostic process.

Key Features and Benefits for Autel powerscan ps100:

• Comprehensive Electrical Testing:
  • Perform a wide range of services, including power injection, measurement, ground testing, polarity checks, continuity testing, and component activation.
• Intuitive Avometer:
  • Instantly read voltage, current, and resistance with the user-friendly Avometer.
• Instant Power/Ground Lead:
  • Activate electrical components like cooling fans and relays with the flip of a switch.
• Component Activation:
  • Simultaneously use the hot and ground leads to activate components in your hand, verifying their functionality.
• Circuit Identification:
  • Instantly identify positive, negative, and open circuits for quick troubleshooting.
• Bad Ground Detection:
  • Test for bad ground contacts and locate shorts without wasting fuses.
• Continuity Testing:
  • Instantly check the continuity of switches, relays, and diodes.
• Circuit Breaker Protection:
  • Built-in circuit breaker safeguards the tool and your vehicle’s electrical system.
• Built-in Flashlight:
  • Illuminate dark work areas for added convenience.
• Audio Tone Indicator:
  • Enjoy hands-free menu navigation with audio feedback.

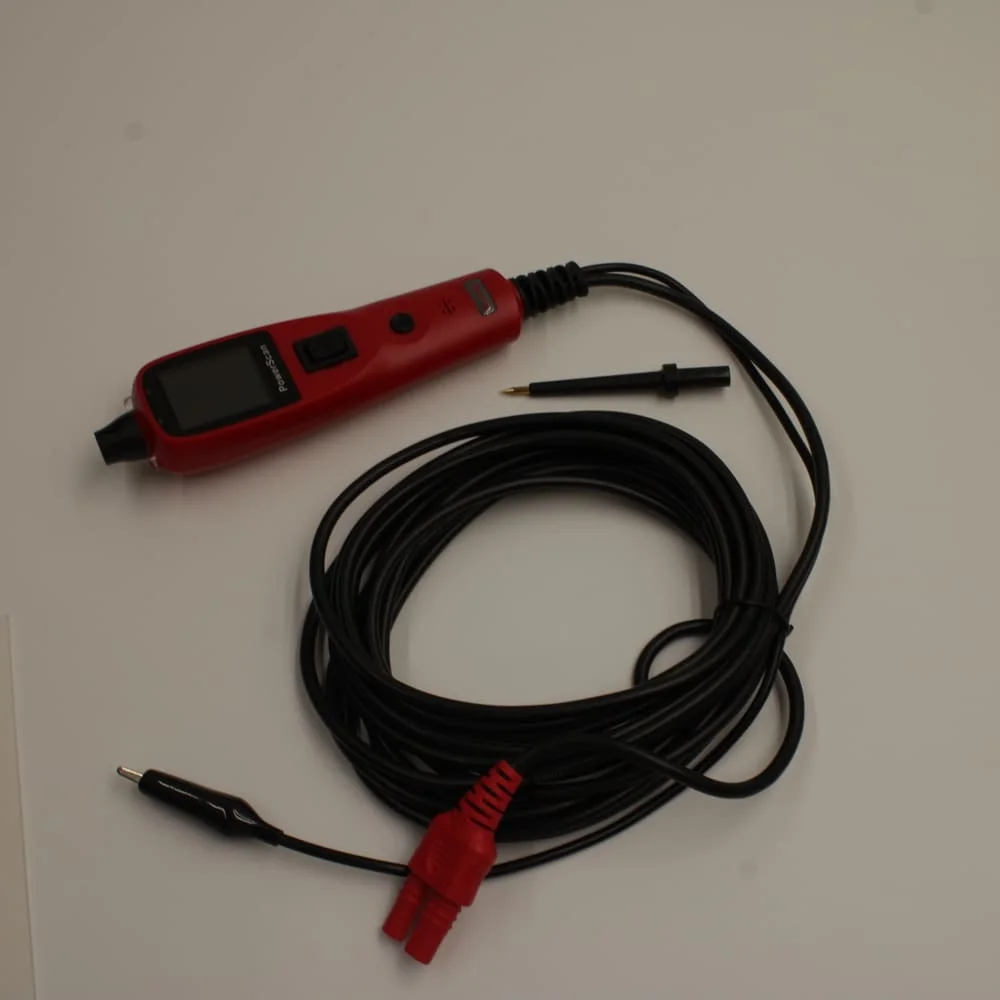

• Long 6 meter Extendable Cable:

• • Easily access and test circuitry throughout the entire vehicle.

Technical Specifications:

• Display:
  • TFT color display (160 x 128 dpi)
• Operating Temperature:
  • From 0 to 60°C
• External Power:
  • Work with 12.0 or 24.0 V, power provided via vehicle battery.
• Dimensions:
  • 126mm * 5mm * 35mm
• Weight:
  •  Net weight 0.105 KG, Gross weight 0.726kg

Compu-Car: Your Trusted Autel Partner in Saudi Arabia

Purchase your Autel powerscan automotive circuit tester with confidence from Compu-Car, the Official and exclusive distributor of Autel tools in Saudi Arabia. We offer an extended 2-year local warranty, doubling the 1-year international warranty provided by Autel. This ensures that you receive comprehensive coverage and peace of mind with your investment.

At Compu-Car, customer satisfaction is our top priority

Our dedicated team of expert technicians is committed to providing comprehensive technical support, ensuring you have the assistance you need to maximize the benefits of your Power Scan PS100 and achieve optimal results in your electrical diagnostics.

Need more information? Contact us by WhatsApp from the following icon or by phone on the same number.

Autel PowerScan PS100 Manual

Autel powerscan PS100: Safe and Efficient Electrical Diagnostics

The Autel scanner Power Scan PS100 is a cutting-edge automotive circuit tester designed to simplify electrical diagnostics. However, as with any electrical tool, safety is paramount. Before using your Autel Power Scan 100, familiarize yourself with these essential safety precautions to protect yourself and your vehicle.

General Safety Guidelines:

• Choose a Safe Environment:
  • Always perform automotive testing in a well-ventilated area away from flammable materials.
• Eye Protection:
  • Wear safety glasses that meet ANSI standards to shield your eyes from sparks or debris.
• Avoid Moving Parts:
  • Keep clothing, hair, hands, tools, and test equipment clear of moving or hot engine parts.
• Vehicle Preparation:
  • Ensure the vehicle is in Park (automatic transmission) or Neutral (manual transmission) with the parking brake engaged before conducting any tests.
• Fire Safety:
  • Keep a fire extinguisher rated for gasoline/chemical/electrical fires readily available.
• Disconnect Before Ignition:
  • Never connect or disconnect test equipment while the ignition is on or the engine running.
• Maintain Tool Cleanliness:
  • Keep the power scan tool PS100 dry, clean, and free of oil, water, or grease. Use a mild detergent on a clean cloth for external cleaning.

Electrical Safety Precautions:

• Spark Hazard:
  • When the power switch is pressed, the tool conducts battery current/voltage directly to the tip, potentially causing sparks when contacting ground or certain circuits. Avoid using the tool near flammable substances like gasoline.
• High Voltage Components:
  • Exercise extreme caution around the ignition coil, distributor cap, ignition wires, and spark plugs, especially when the engine is running, as these components generate hazardous voltages.

Compu-Car: Your Trusted Autel Partner in Saudi Arabia

Purchase your Autel Power Scan PS100 from Compu-Car, the official distributor of Autel tools in Saudi Arabia. Benefit from our 2-years local warranty, which doubles Autel’s standard 1-year international warranty, and our expert technical support to address any questions or concerns.

By adhering to these safety precautions and utilizing the Autel power scan ps100 automotive circuit tester responsibly, you can ensure a safe and efficient diagnostic experience.

Autel Power Scan PS100: Your Comprehensive Guide to Mastering Electrical Diagnostics

The Autel Power Scan PS100 isn’t just a circuit tester; it’s your all-in-one solution for diagnosing complex electrical issues in vehicles. Let’s delve into the key components and specifications of this powerful tool, empowering you to troubleshoot electrical systems with confidence.

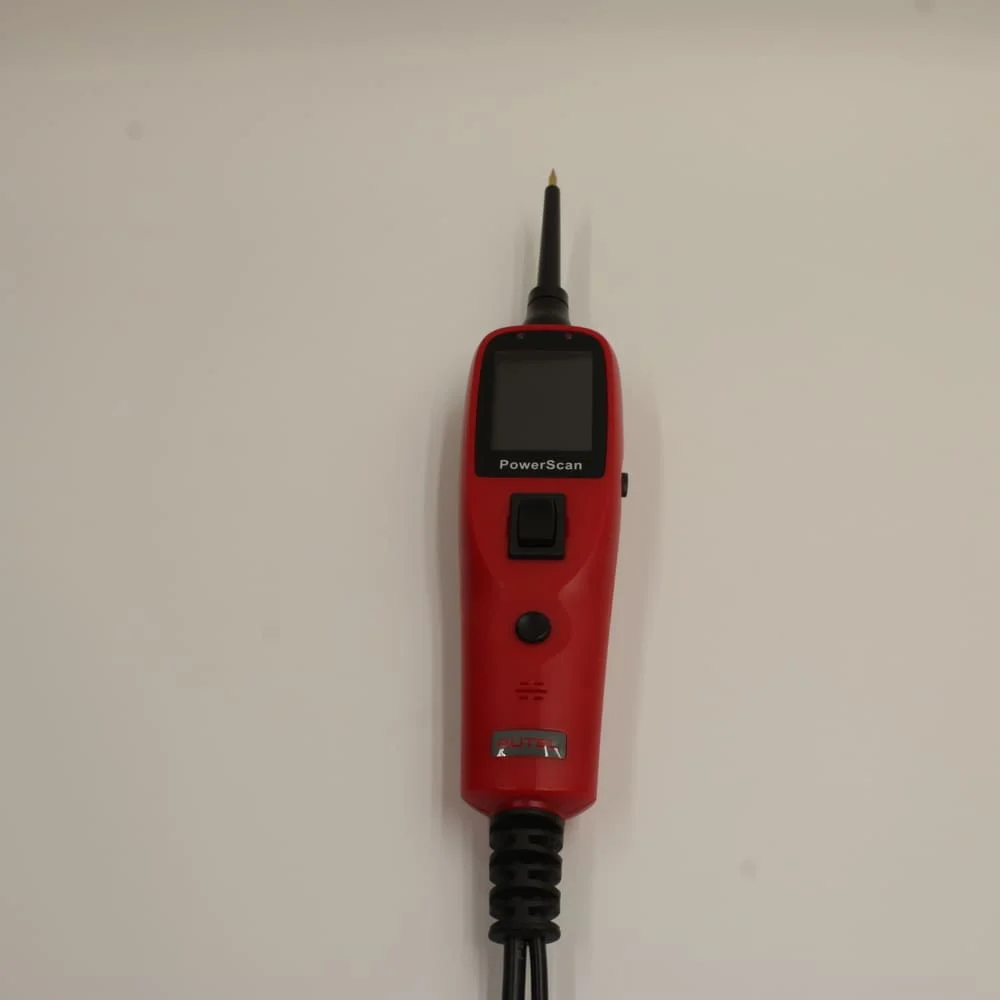

Exploring the Autel Power probe PS100

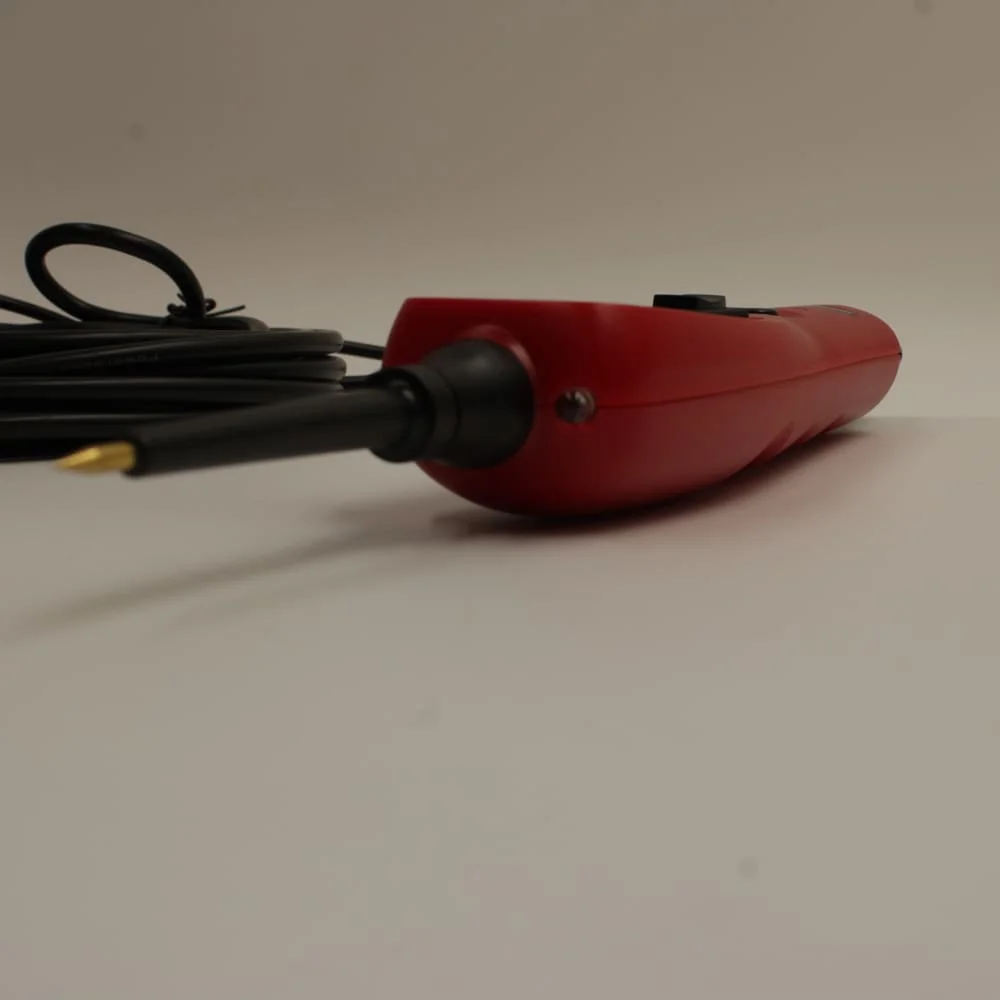

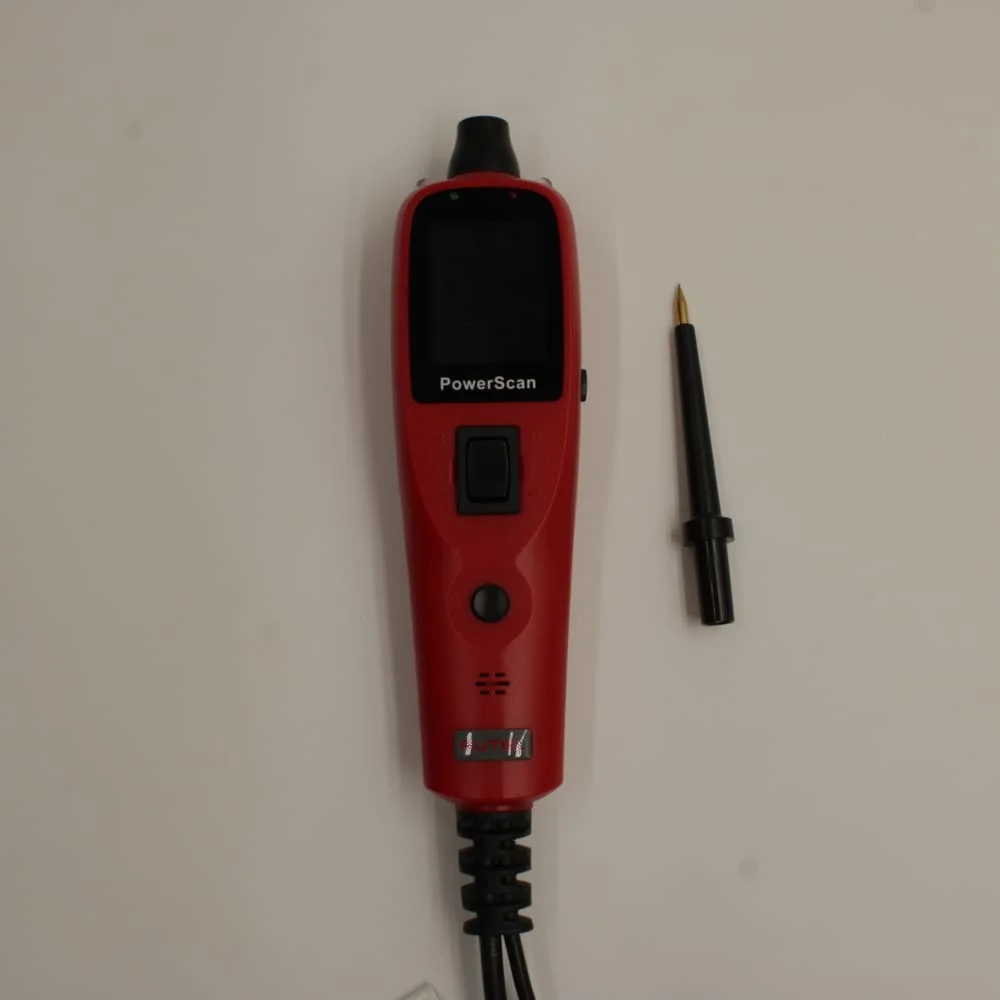

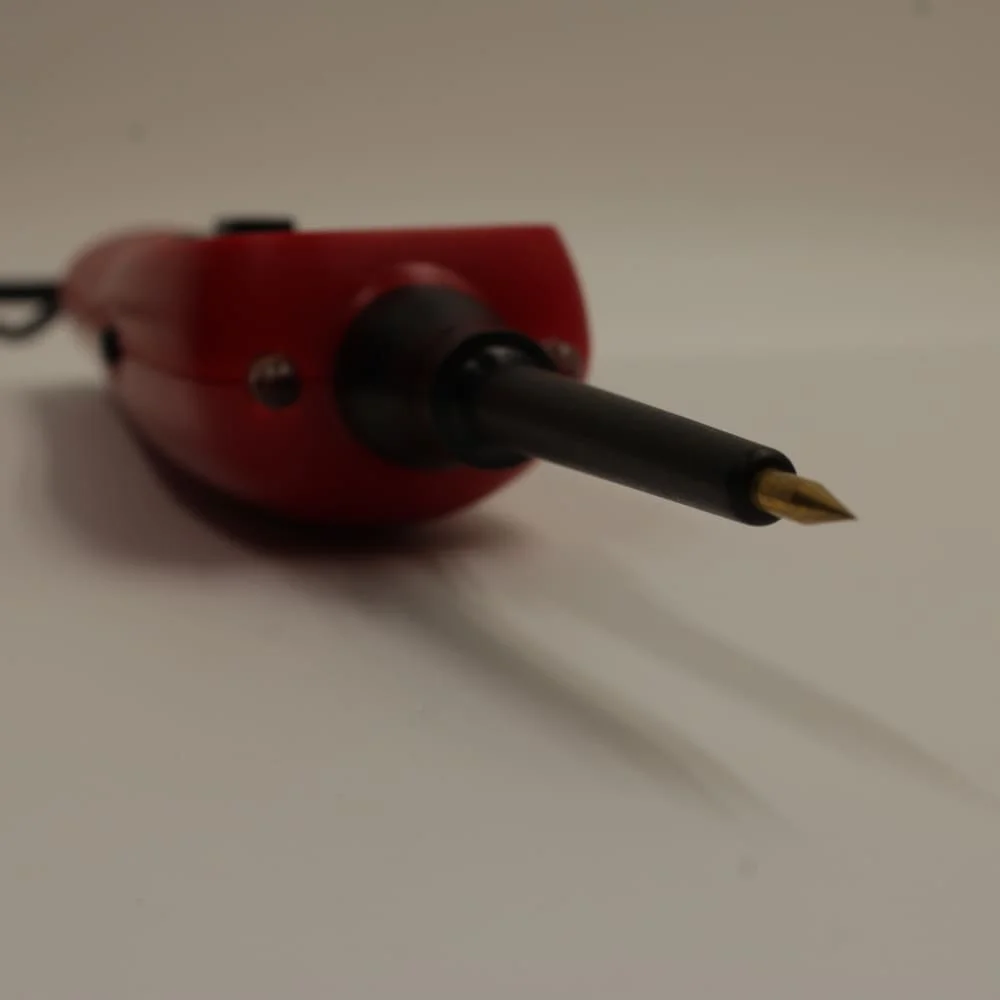

1. Probe Tip: The heart of the tool, making direct contact with the circuit or component under scrutiny.
2. Head Lights: Illuminates your work area, ensuring visibility even in low-light conditions.
3. Red/Green Polarity Indicator: Instantly identifies positive, negative, or open circuits through a clear visual cue.
4. LCD Display: Presents test results in a crisp, easy-to-read format.
5. Circuit Breaker Reset: Resets the tool in case of an overload, ensuring uninterrupted operation.
6. Power Switch: Controls the flow of positive or negative battery current to the probe tip for testing component functionality.
7. Mode Button: Toggles between AC voltage, DC voltage, resistance, and tone modes, adapting to your specific needs.
8. Speaker: Provides audible feedback (beep) when the audio tone feature is activated.
9. Auxiliary Ground Lead: Assists in testing by acting as a ground reference point.
10. Adaptor: Connects the Power Scan PS100 to the vehicle’s battery for power.

Technical Specifications

• Display:
  • TFT color display (160 x 128 dpi) for clear visuals.
• Operating Temperature:
  • Functions optimally between 0 to 60°C (32 to 140°F).
• Storage Temperature:
  • Can be safely stored between -40 to 70°C (-40 to 185°F).
• External Power:
  • Powered by the vehicle’s 12.0V or 24.0V battery.
• Dimensions:
  • Compact and portable at 126mm x 46.5mm x 35mm.
• Weight:
  • Lightweight at 0.105kg (0.23lb) net weight, 0.726kg (1.6lb) gross weight.

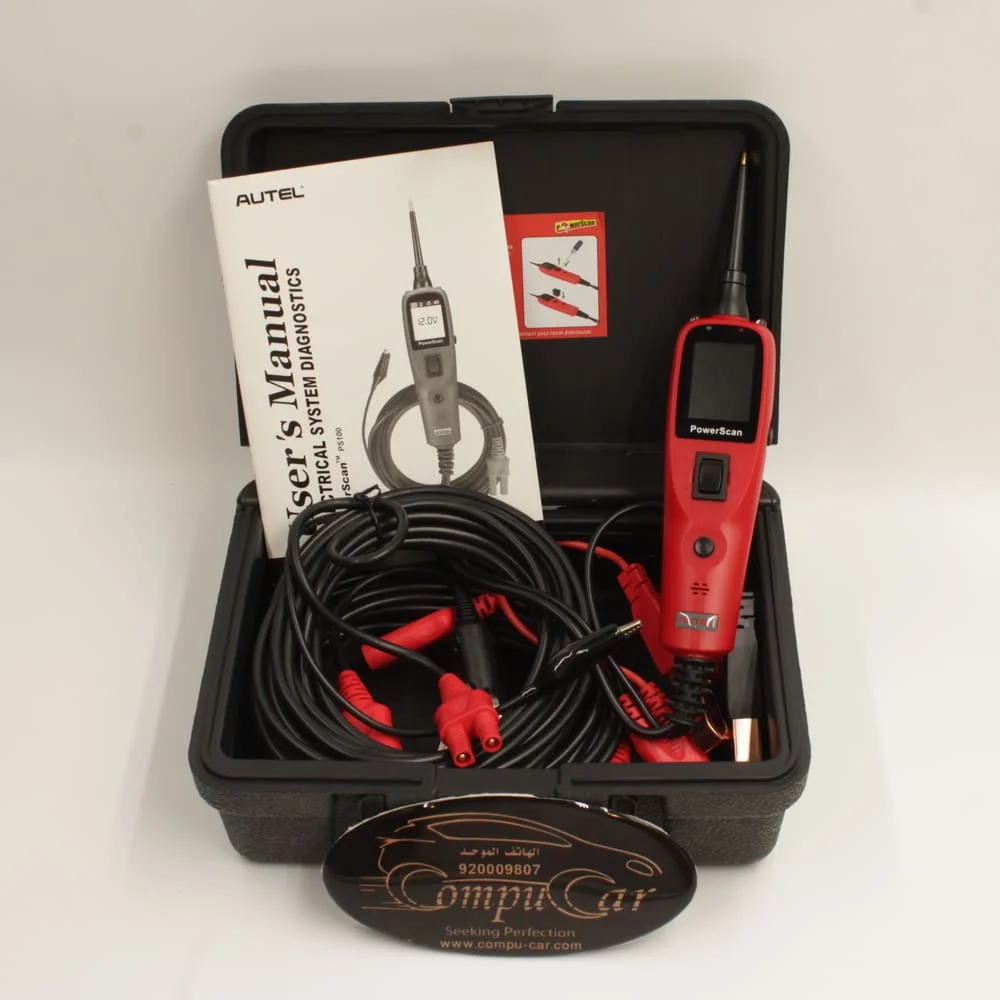

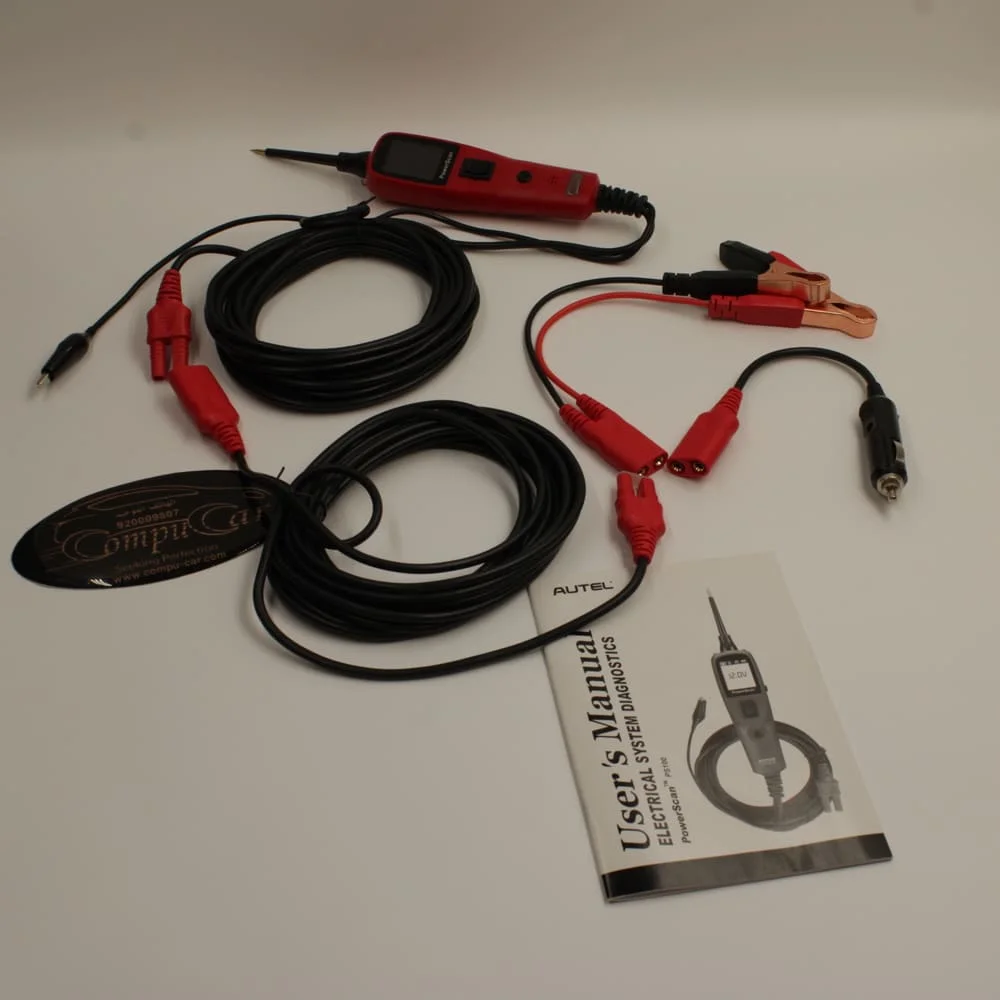

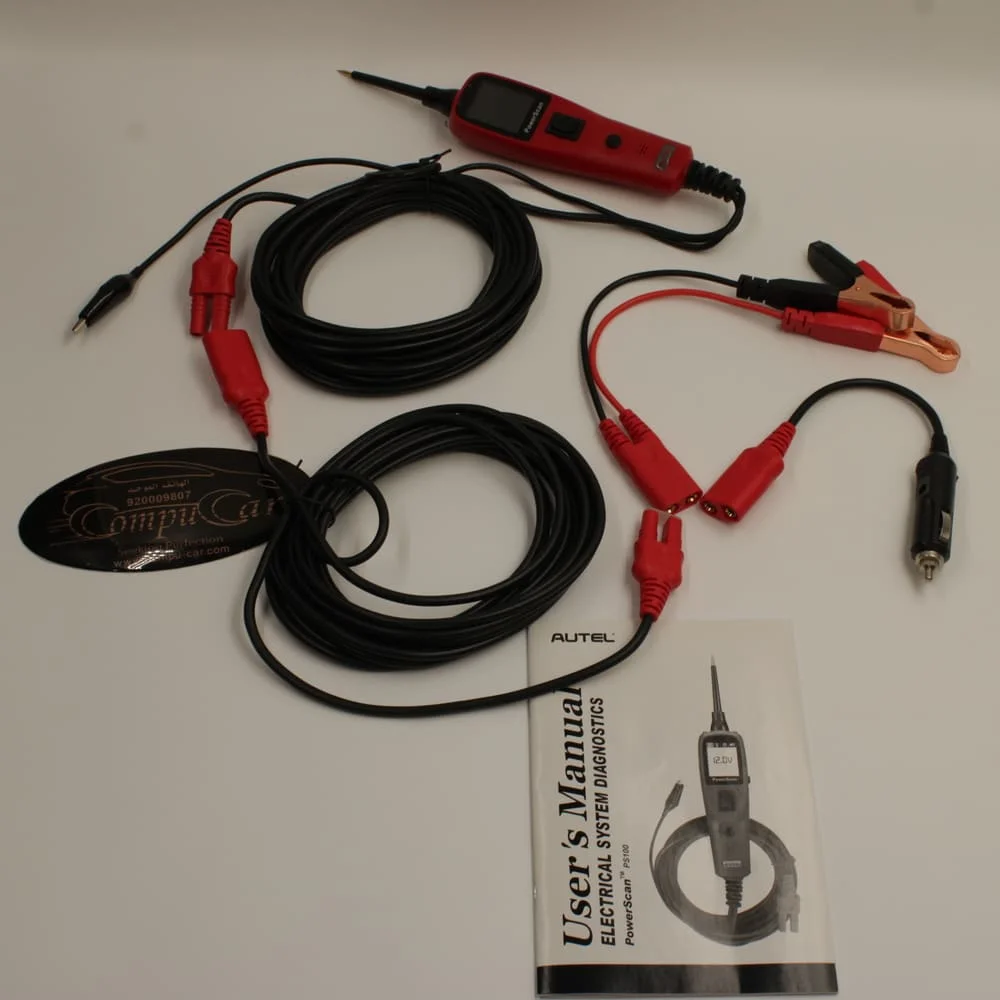

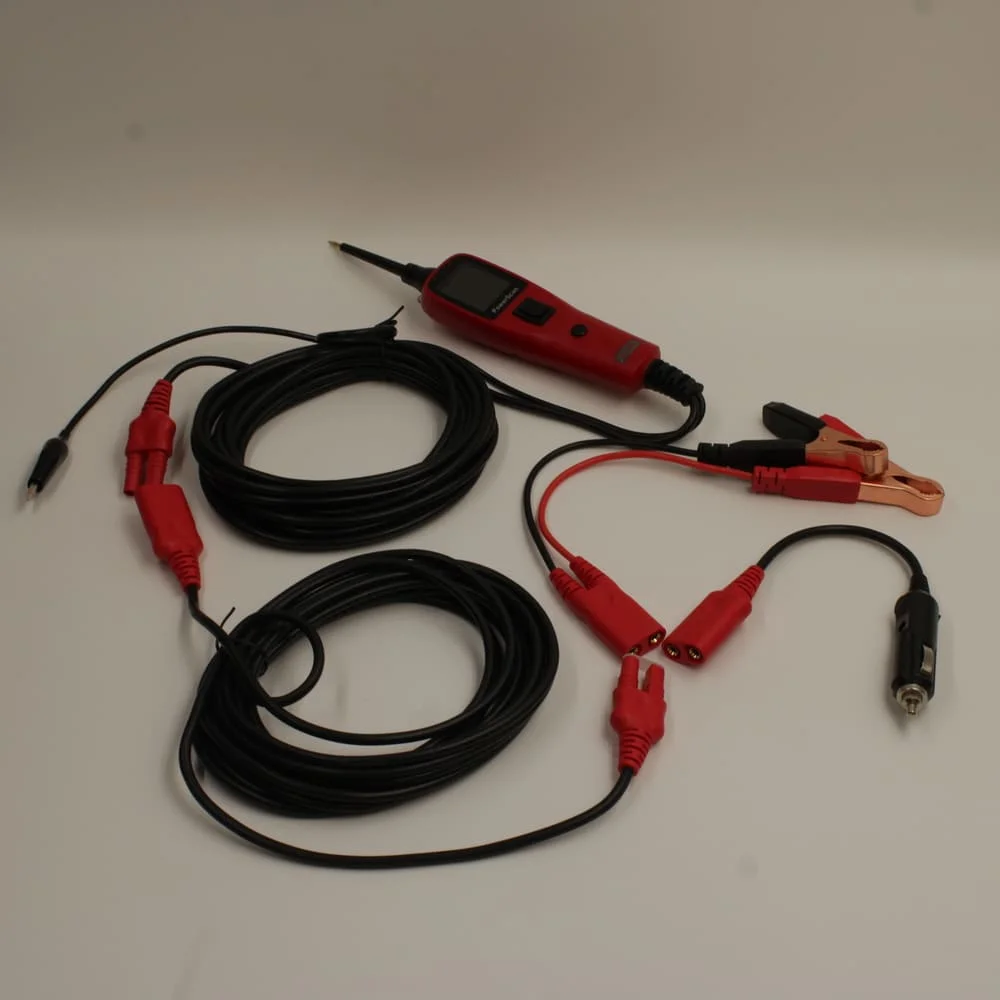

What’s in the Box?

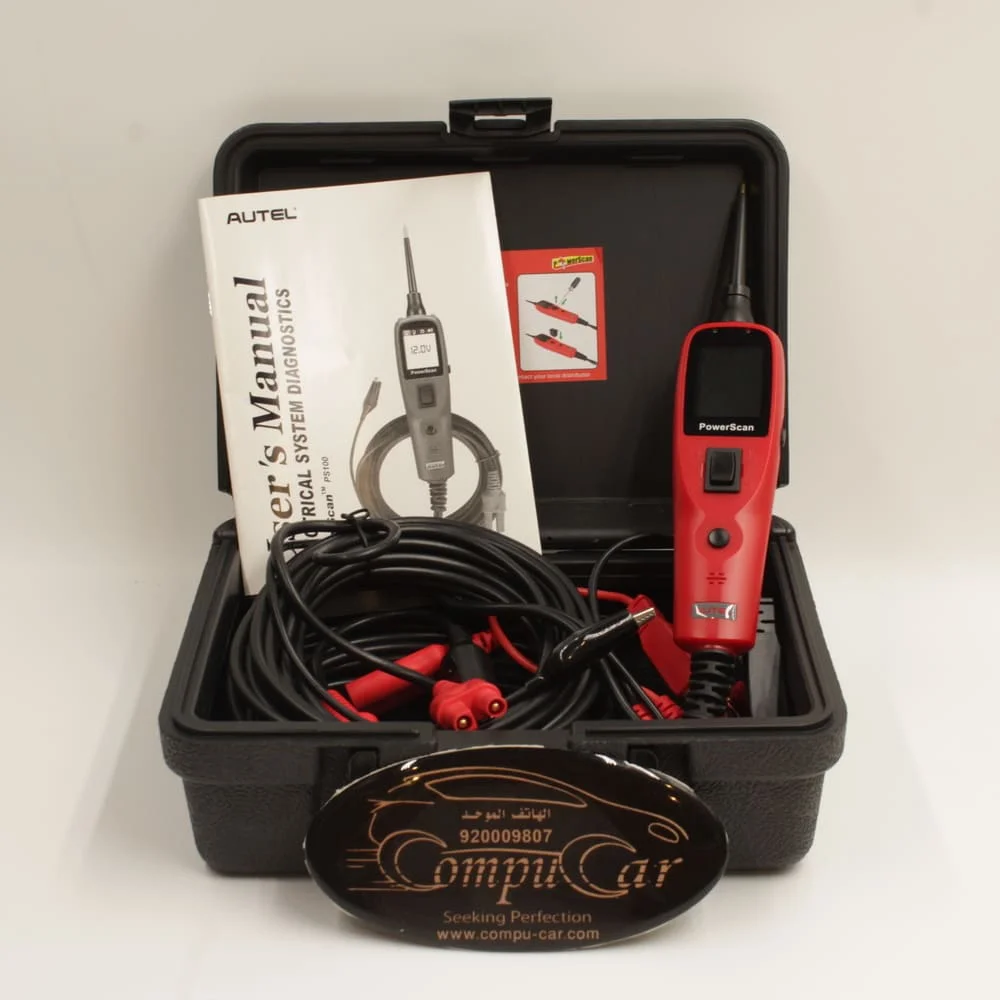

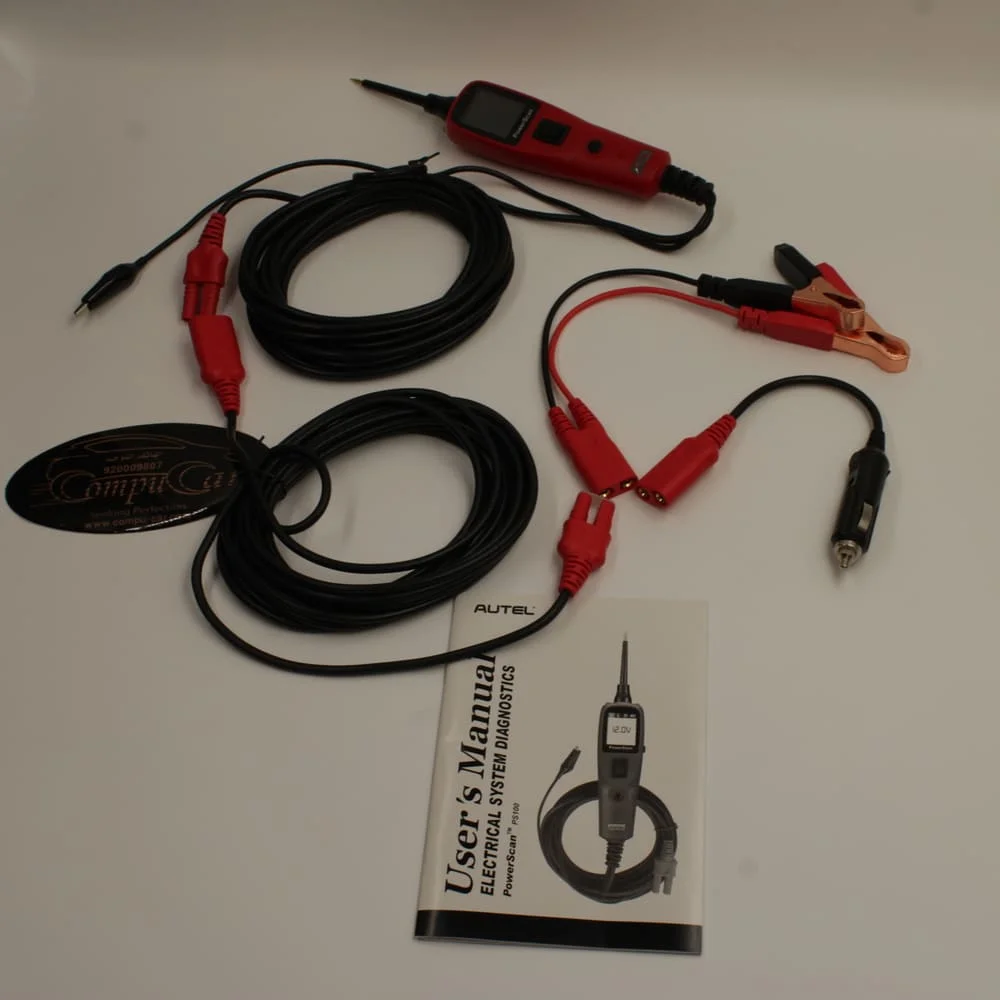

Your ps100 circuit tester comes complete with:

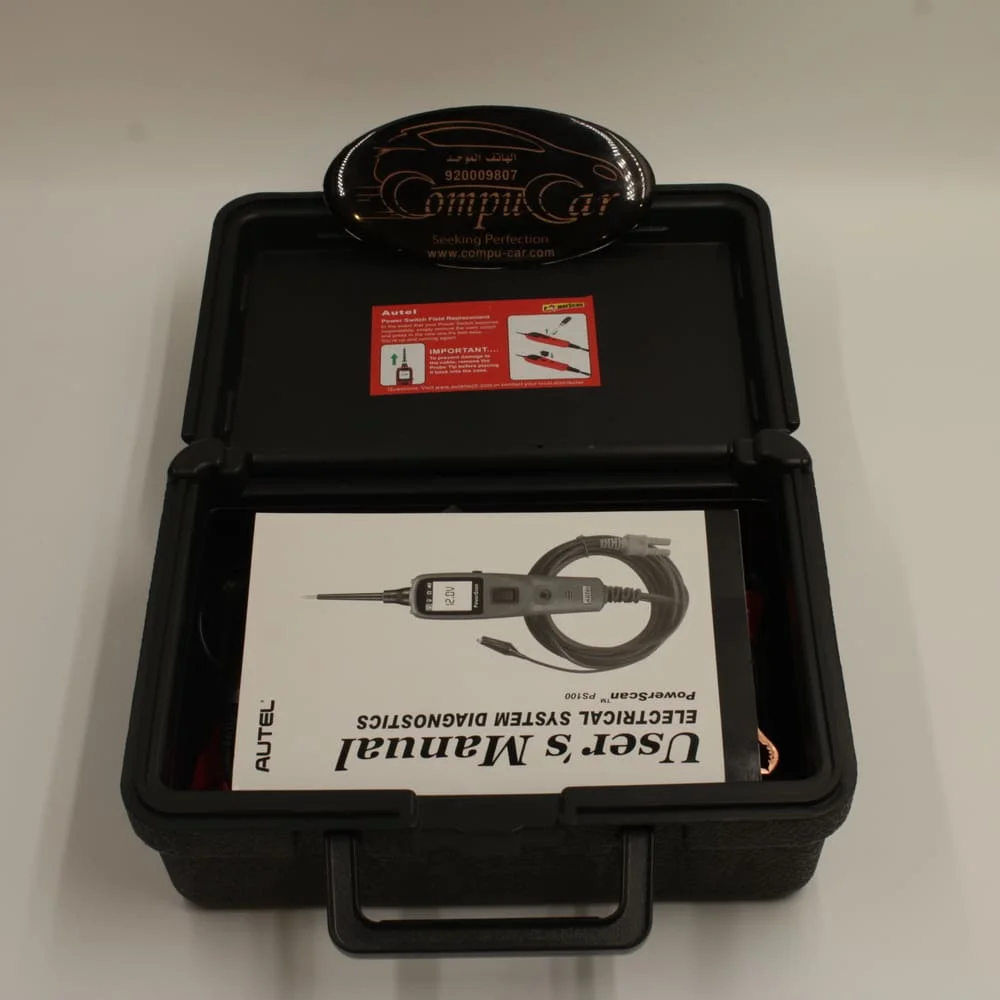

• User’s Manual:
  • Your guide to unlocking the full potential of the tool.
• Cigarette Lighter Adapter:
  • For convenient power connection.

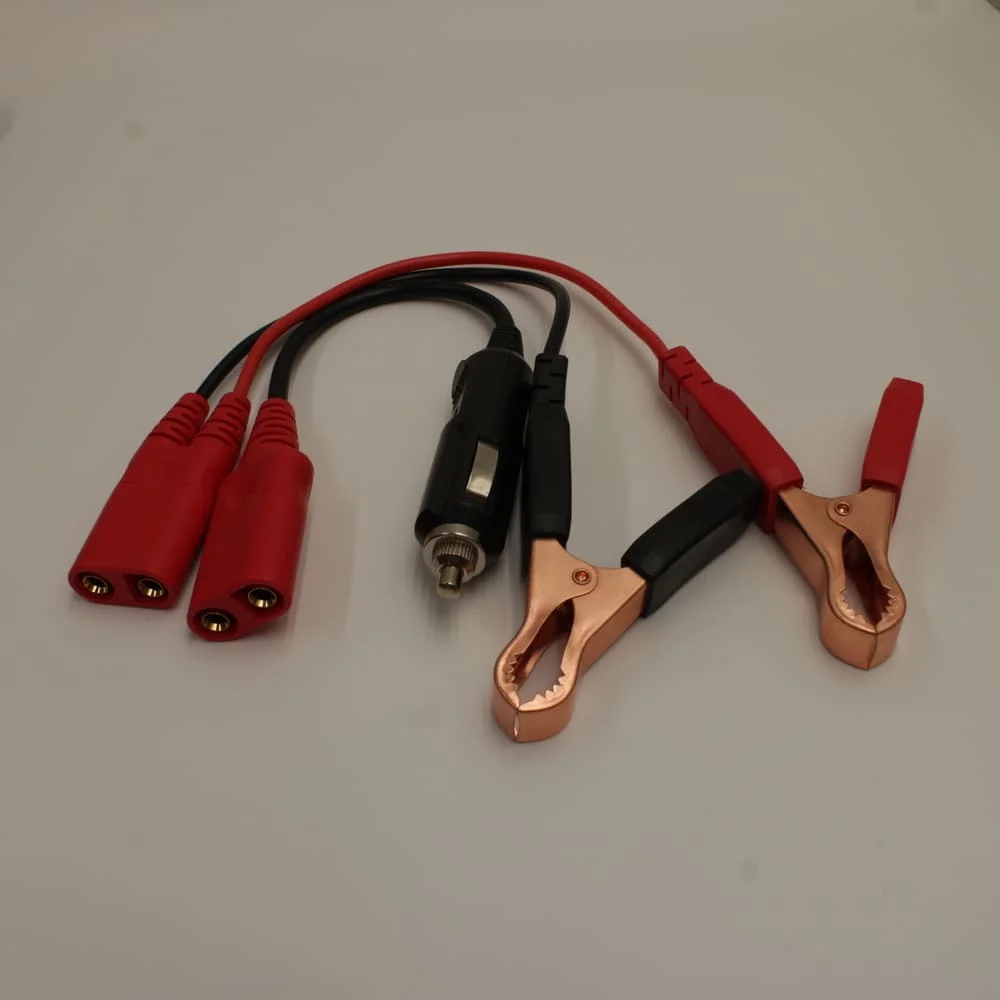

• Battery Hookup Clips:
  • Securely connect the tool to the vehicle’s battery.
• Probe Tip:
  • The essential interface for circuit testing.

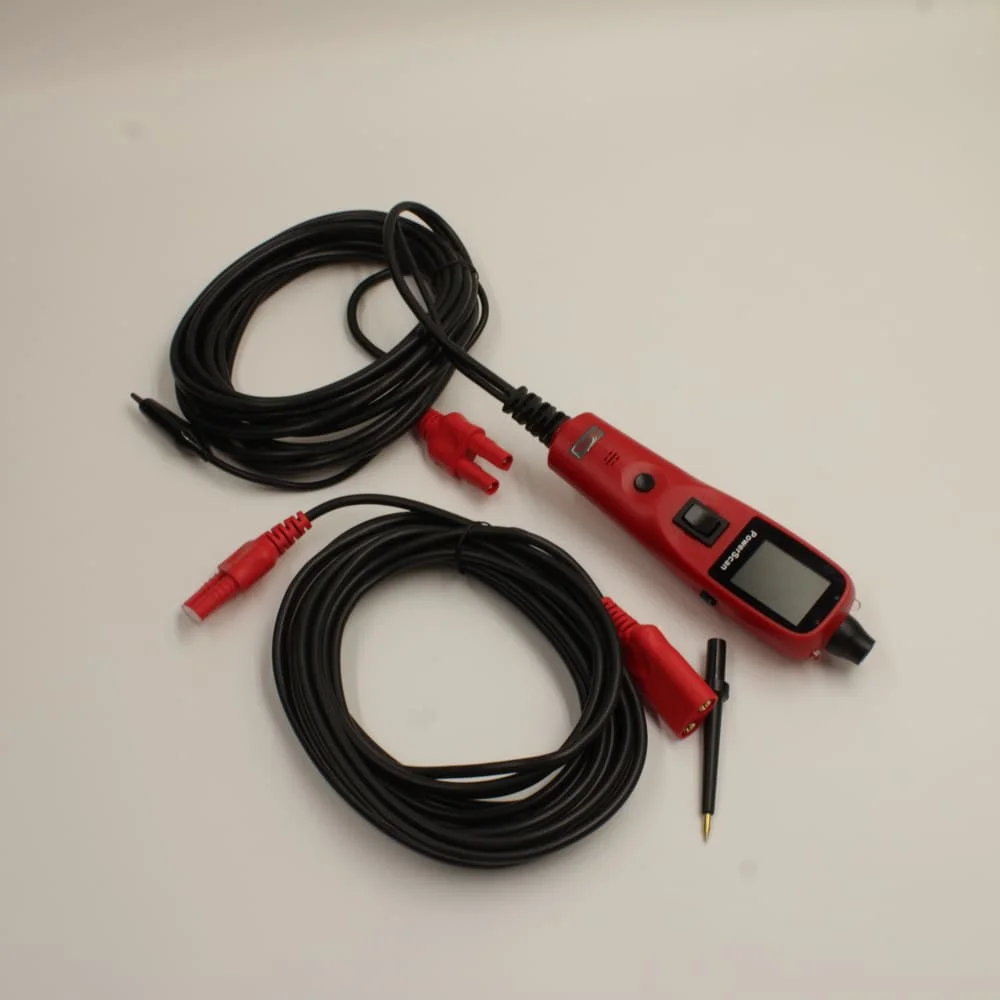

• 20ft. Extension Cable:
  • Extend your reach for comprehensive diagnostics.

Compu-Car: Your Trusted Autel Partner in Saudi Arabia

Purchase your Autel Power Scan PS100 from Compu-Car, the official distributor of Autel tools in Saudi Arabia. Benefit from our 2-year local warranty, which doubles Autel’s standard 1-year international warranty, and our expert technical support to address any questions or concerns.

Need more information? Contact us by WhatsApp from the following icon or by phone on the same number.

 General Description and Usage for PS100

The Autel Power Scan PS100 is the ultimate electrical tester, designed to streamline diagnostic time in all 6- to 30-volt vehicle electrical systems. With a simple connection to the vehicle’s battery, you can:

• Instantly Determine Circuit Status:
  • Identify positive, negative, or open circuits at a glance, eliminating the need to constantly reconnect clips between battery poles.
• Test for Continuity:
  • Utilize the built-in auxiliary ground lead to effortlessly check continuity in electrical circuits.
• Activate Components:
  • By depressing the power switch, send a positive or negative battery current to the probe tip to test the functionality of electrical components without jumper wires.
• Identify Bad Ground Contacts:
  • Quickly detect poor ground connections without performing voltage drop tests. The tool is also short-circuit protected, with an internal circuit breaker that trips if overloaded.
• Trace Short Circuits:
  • Efficiently follow and locate short circuits without wasting fuses. The tool’s long cable allows you to test along the entire vehicle length without constantly searching for suitable ground points.

Powering the PowerScan PS100

The tool draws power directly from the vehicle’s battery. Connect the RED battery clamp to the POSITIVE terminal and the BLACK clamp to the NEGATIVE terminal. Upon connection, the tool will beep, and the headlamps will illuminate the probe tip’s test area.

Quick Self-Test for Optimal Performance

Before testing any circuit or component, ensure your PowerScan PS100 is in working order by performing a quick self-test:

1. With the tool connected to the battery, press the power switch forward to activate the tip with positive voltage. The red LED should illuminate, and the LCD display should show the battery voltage. If the tone feature is on, a high-pitched tone will sound. Release the power switch, and the LED and tone should cease.
2. Press the power switch backward to activate the tip with negative voltage. The green LED should illuminate, and the LCD display should read 0.0V (ground). If the tone feature is on, a low-pitched tone will sound. Release the power switch, and the LED and tone should cease.

If the tool passes both tests, it is functioning correctly and ready for use.

Advanced Features for Efficient Diagnostics

Important Note: To prolong the lifespan of the power switch, first press the switch before contacting the probe tip to the component. This directs any arcing to the tip instead of the switch contacts.

Circuit Breaker: Your Safety Net

The PowerScan PS100 prioritizes safety with its built-in circuit breaker, which trips in case of overload. This feature not only protects the tool but also serves as a valuable diagnostic aid. When tripped, the LCD displays a warning message, but other functions remain active. This allows you to probe circuits and read voltage while preventing the tool from conducting battery current to the tip, even when the power switch is pressed. Strategically tripping the breaker can act as an extra safety measure against accidental switch activation.

Versatile Work Modes

The PowerScan PS100 offers four distinct work modes for comprehensive electrical diagnostics:

• DC Voltage:
  • In this mode, simply touch the probe tip to a circuit, and the LCD display will show the DC voltage with 0.1V resolution.
• AC Voltage:
  • Analyze AC circuits by touching the probe tip and viewing the maximum voltage, minimum voltage, frequency, and duty cycle on the LCD display.
• Resistance:
  • Measure resistance between the probe tip and auxiliary ground lead by touching the probe tip to the circuit
• Tone On/Off:
  • Toggle the audio tone on or off with a quick press of the Mode button.  A short, high beep indicates the tone is on, while a short, low beep signifies it’s off. This feature is especially useful in bright environments where visual cues may be challenging to see.

Practical Applications for Efficient Diagnostics

The Autel PS100 is not just a theoretical tool; it’s designed for real-world applications in your automotive workshop. Let’s explore some practical scenarios where the PowerScan PS100 can streamline your diagnostic process.

How to do Voltage & Polarity Testing using Autel powerscan ps100

With the tool in DC Voltage mode:

• Positive Circuit:
  • Touch the probe tip to a positive circuit. The red LED will illuminate, and the LCD display will show the voltage with 0.1V resolution. If the audio tone is enabled, you’ll hear a high-pitched beep.
• Negative Circuit:
  • Touch the probe tip to a negative circuit. The green LED will light up, and the LCD display will show the voltage. A low-pitched beep will sound if the audio tone is on.
• Open Circuit:
  • If neither LED lights up, you’ve likely encountered an open circuit.

Continuity Testing

Switch to Resistance mode and use the probe tip with either chassis ground or the auxiliary ground lead to test continuity in wires and components, whether connected or disconnected from the vehicle’s electrical system.

• Good Ground:
  • If the LCD displays 0.0Ω and the green LED lights up, accompanied by a low-pitched beep (if enabled), you have a good ground connection.
• Other Cases:
  • The LCD will simply show the resistance value.
• Resistance Over 200kΩ:
  • The LCD will display 0L.

You can also verify continuity by powering up the connection using the power switch. If the circuit breaker trips, you have a solid, low-resistance connection.

Note: The probe tip can pierce through plastic insulation, allowing you to test circuits without disconnecting anything.

Signal Circuit Testing with Autel powerscan ps100

After retrieving a Diagnostic Trouble Code (DTC) related to a sensor circuit, use the Power Scan PS100 for a quick verification test. For instance, to check a suspected issue with the Mass Air Flow (MAF) sensor circuit:

1. Set the tool to AC Voltage mode, using the probe tip with chassis ground or the auxiliary ground lead.
2. Connect a vacuum pump to the MAF sensor.
3. Touch the probe tip to the positive terminal of the MAF sensor and observe the LCD readings, which should ideally display a sine wave.
4. Apply vacuum.
5. Release vacuum and observe the LCD readings again.

If the LCD readings deviate from the normal sine wave pattern, there is likely a problem with the MAF sensor.

Hands-On Component Activation and Testing with Autel powerscan ps100 automotive circuit tester

The Autel Power Scan PS100 empowers you to activate and test electrical components directly, both in your hand and within the vehicle. Let’s dive into the procedures and precautions for safe and effective testing.

Activating Components in Your Hand

1. Set to DC Voltage Mode: Ensure the Power Scan PS100 is in DC Voltage mode.
2. Connect Ground Lead: Attach the auxiliary ground lead to the negative terminal or ground side of the component.
3. Probe Positive Terminal: Touch the probe tip to the positive terminal of the component. The green LED should light up, indicating continuity.
4. Activate with Power Switch: Briefly press and release the power switch forward. If the green LED turns off and the red LED comes on, proceed to the next step.
5. Hold Power Switch: Press and hold the power switch forward to supply power to the component. Power will flow from the positive battery lead, through the probe tip, into the component, and back to the battery’s ground via the auxiliary ground lead.

Troubleshooting Overload:

If the green LED goes off immediately or the circuit breaker trips, the tool is overloaded. This can occur if:

• The probed contact is a direct ground or negative voltage.
• The component is short-circuited.
• The component draws high current (e.g., starter motor).

If the circuit breaker trips, reset it after a 15-second cooldown.

Testing Trailer Lights and Connections with Autel powerscan ps100

1. DC Voltage Mode: Keep the tool in DC Voltage mode.
2. Connect Ground Lead: Clip the auxiliary ground lead to the trailer’s ground.
3. Probe Contacts: Probe the contacts at the jack.
4. Apply Voltage: Touch the probe tip to the positive terminal of the bulb and press the power switch forward to activate it.

This allows you to verify the connector’s functionality and orientation, as well as the trailer lights’ operation. A tripped circuit breaker likely indicates ground contact; reset it after 15 seconds.

Activating Components in the Vehicle

Follow the same procedure as activating components in your hand but ensure proper connection to the vehicle’s ground. If the circuit breaker trips, it could be due to a direct ground, a short circuit, or a high-current component.

Warning: Incorrectly applying voltage can damage vehicle electronics. Always refer to the manufacturer’s schematics and diagnostic procedures.

Note: To prolong the power switch’s lifespan, press it before contacting the component to prevent arcing on the switch contacts.

Activating Components with Ground

1. DC Voltage Mode: Set the tool to DC Voltage mode.
2. Probe Negative Terminal: Touch the probe tip to the component’s negative terminal. The red LED should light up.
3. Activate with Power Switch: Briefly press and release the power switch backward. If the red LED turns off and the green LED comes on, proceed.
4. Hold Power Switch: Press and hold the power switch backward to activate the component.

Warning: Applying ground to a protected circuit can blow a fuse. Exercise caution when using this function.

Advanced Diagnostic Techniques

The Autel Power Scan PS100 goes beyond basic circuit testing, offering advanced diagnostic capabilities to pinpoint electrical issues with precision.

Checking for Bad Ground Connections

1. Probe Suspect Ground: Touch the probe tip to the ground wire or contact in question.
2. Observe LED and Activate: Watch the green LED. Press and release the power switch forward.
   • If the green LED turns off and the red LED comes on, it’s not a proper ground connection.
   • If the circuit breaker trips, it’s likely a good ground. (Note: High-current components like starter motors can also trip the breaker.)

Following & Locating Short Circuits

Short circuits often manifest as blown fuses, fusible links, or tripped circuit breakers. To pinpoint the location:

1. Remove Blown Fuse: Identify and remove the blown fuse from the fuse box.
2. Test Fuse Contacts: Use the probe tip to energize each fuse contact. The contact that trips the circuit breaker is the shorted circuit. Note its identification code or color.
3. Trace the Wire: Follow the wire along the wiring harness. For example, in a brake light circuit short, trace the wire through the door sill harness.
4. Probe and Activate: Pierce the insulation with the probe tip and press the power switch forward to energize the wire.
5. Isolate the Short: If the breaker trips, cut the wire and energize each end. The end that trips the breaker again is the shorted circuit.
6. Continue Tracing: Repeat the process, following the wire in the shorted direction until you locate the exact point of the short.

Red/Green Polarity LED: Your Voltage Guide

The Red/Green Polarity LED illuminates when the probe tip voltage matches the battery voltage within ±0.8 volts. This provides valuable information about voltage drops or increases in the circuit.

To determine the battery voltage:

1. Remove Probe: Disconnect the probe tip from the circuit.
2. Press Power Switch: Press the power switch forward. The battery voltage will display on the LCD.
3. Calculate Difference: Compare the battery voltage to the circuit reading to determine voltage drop or increase.

4. power scan datalogic and Specifications

• DC Voltage Range: 0-65V ±1 digit
• Resistance Range: 0 – 200 kΩ
• Tone Frequency Response: 0Hz to 10kHz
• Circuit Breaker:
  • Rating Current: 1 – 10 Amp
  • Testing Standard:
    • 100% current: No trip
    • 150% current: Trips in 1 hour
    • 200% current: Trips in 3-30 seconds
    • 300% current: Trips in 0.5-4.0 seconds

Compu-Car: Your Trusted Autel Partner in Saudi Arabia

Purchase your Autel powerscan ps100 circuit tester from Compu-Car, the official distributor of Autel tools in Saudi Arabia. Benefit from our 2-year local warranty and expert technical support.

Need more information? Contact us by WhatsApp from the following icon or by phone on the same number.
